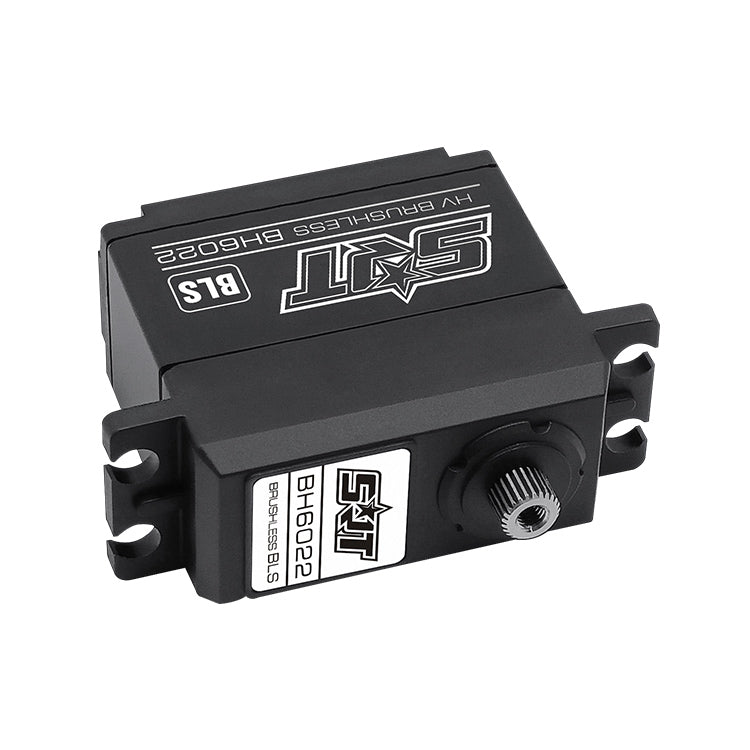

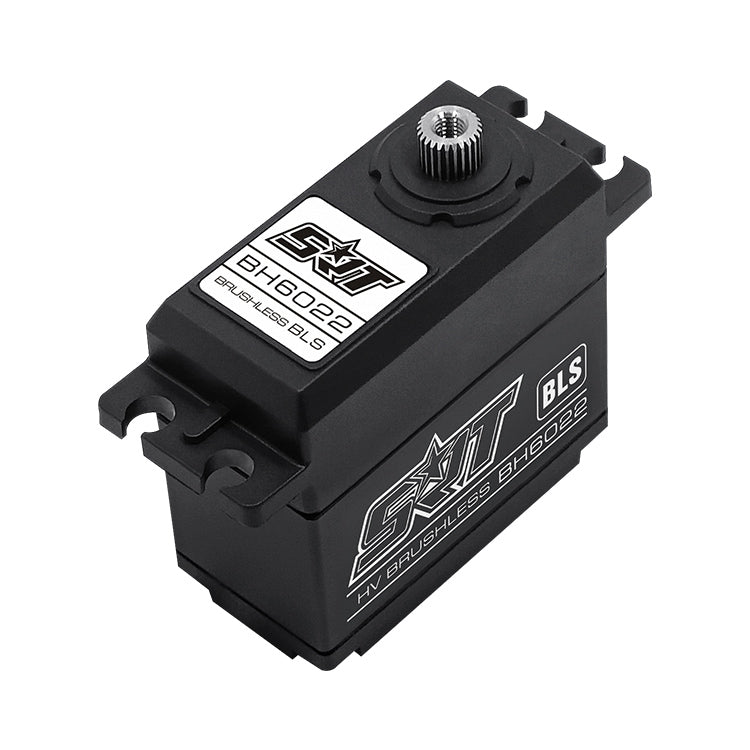

SRT Servo CH6022 1/10 & 1/8 Onroad/Offroad HV (0.06s/8.4V/22kg) Brushless

SRT Servo CH6022 1/10 & 1/8 Onroad/Offroad HV (0.06s/8.4V/22kg) Brushless

SKU CH6022
von SRT
CHF 82.00 - CHF 82.00
CHF 82.00
CHF 82.00 - CHF 82.00
CHF 82.00

Versandinformation

Produkte mit Status "auf Lager", werden bei Bestellungen bis 14.00 Uhr Nachmittags, noch am selben Tag versendet.

Information

Bei Fragen zum Produkt oder detaillierter Informationen zum Bestellvorgang. Ruf uns an!

Telefon: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo CH6022 1/10 & 1/8 Onroad/Offroad HV (0.06s/8.4V/22kg) Brushless

KEY FEATURES

& Ideal for 1/10 on road applications
& incredible efficiency and low power consumption
& Aluminum case for good heat dissipation
& NMB dual main bearings
& 25T output shaft
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
BH6022        0.088 17.0/236.1 0.068 19.0/263.9         0.06 22.0/305.5 Titanium & Alu Brushless  Semi-metal  41.3*20.5*38.3         69.0


Application :
BH6027 HV Brushless Servo1/8 Electric/ Car         BH6027 HV Brushless Servo1/8 Nitro/ Car                   BH6027 HV Brushless Servo 1/10 1/8  2 4WD / Off-road
BH6027 HV Brushless Servo 1/8 Off-road            BH6027 HV Brushless Servo1/10 1/8  / Off-road



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless

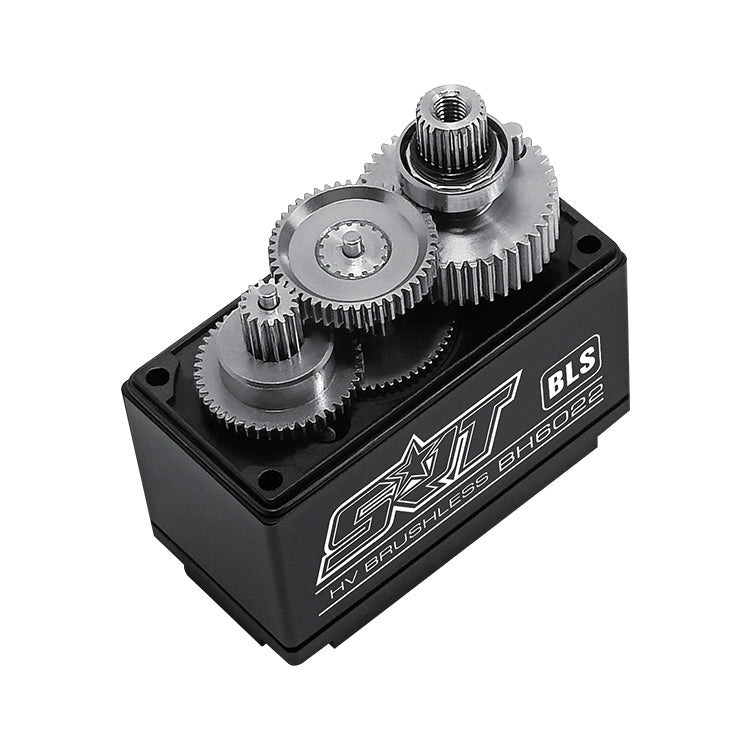

Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.088 sec/60 degrees at no load
operating speed (7.4v): 0.068 sec/60 degrees at no load
operating speed (8.4v): 0.06 sec/60 degrees at no load
stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
stall torque (7.4v): 19.0kg.cm (263.9 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive
dimensions: 41.3x20.5x38.3 mm /1.63x0.80x1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm

}
