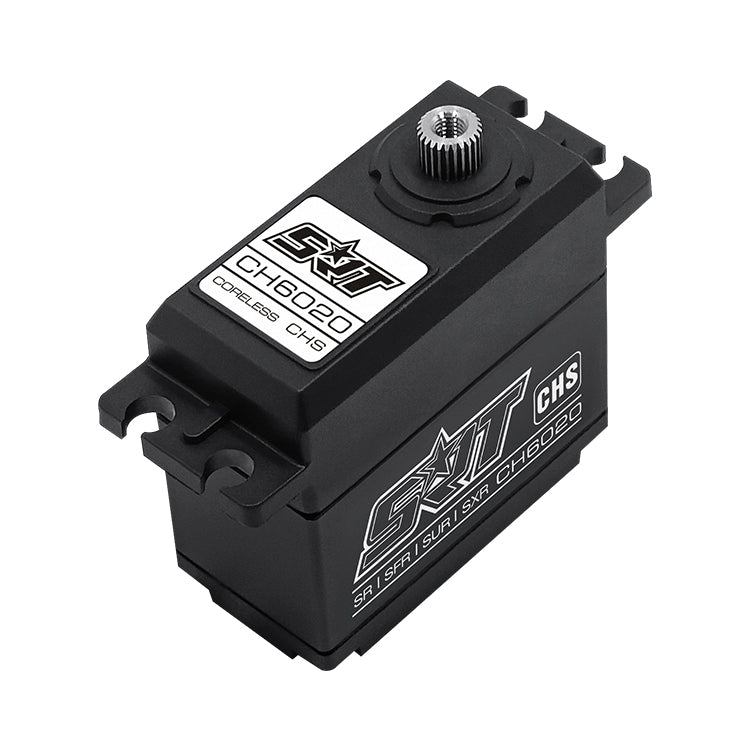

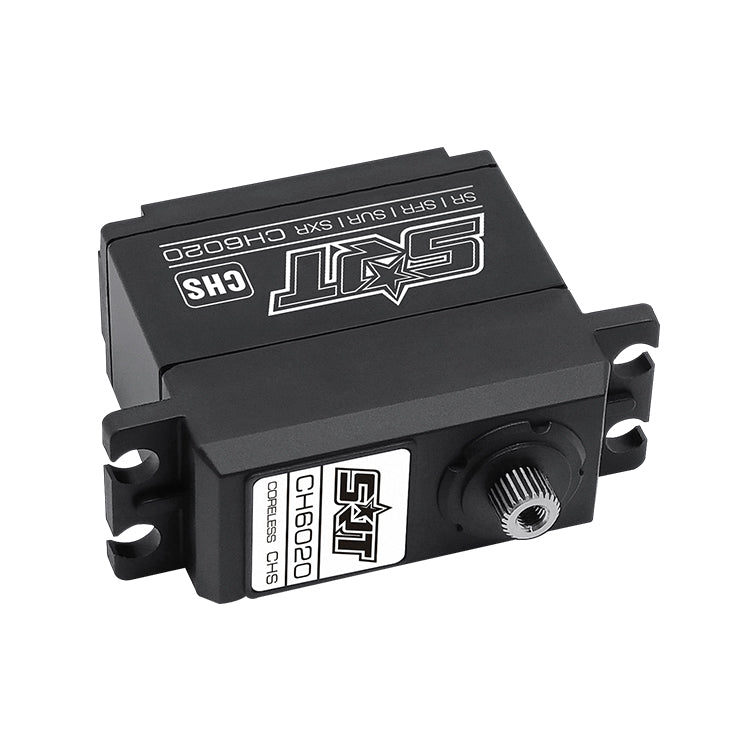

SRT Servo CH6020 1/10 & 1/8 Onroad/Offroad HV (0.09s/8.4V/20kg) Coreless

SRT Servo CH6020 1/10 & 1/8 Onroad/Offroad HV (0.09s/8.4V/20kg) Coreless

SKU CH6020
von SRT
CHF 58.00 - CHF 58.00
CHF 58.00
CHF 58.00 - CHF 58.00
CHF 58.00

Versandinformation

Produkte mit Status "auf Lager", werden bei Bestellungen bis 14.00 Uhr Nachmittags, noch am selben Tag versendet.

Information

Bei Fragen zum Produkt oder detaillierter Informationen zum Bestellvorgang. Ruf uns an!

Telefon: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo CH6020 1/10 & 1/8 Onroad/Offroad HV (0.09s/8.4V/20kg) Coreless

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
& incredible efficiency and low power consumption

& Supporting SR, SFR, SUR, SXR multiple ultra high speed modes

& 2 μsec Dead Band
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
CH6020 0.12 14.0/194.4 0.10 18.0/250.0 0.09 20.0/277.7 Titanium & Alu Coreless  Semi-metal 41.3*20.5*38.3 69.0


Application :
SRT CH6020 1/8Scale Car HV CORELESS Servo1/8 Electric/ Car         SRT CH6020 1/8Scale Car HV CORELESS Servo1/8 Nitro/ Car               SRT CH6020 1/8Scale Car HV CORELESS Servo 1/8  2 4WD /Off-road
SRT CH6020 1/8Scale Car HV CORELESS Servo1/8 /Off-road             SRT CH6020 1/8Scale Car HV CORELESS Servo1/8 /Off-road               SRT CH6020 1/8Scale Car HV CORELESS Servo 1/8 Off-road



PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless

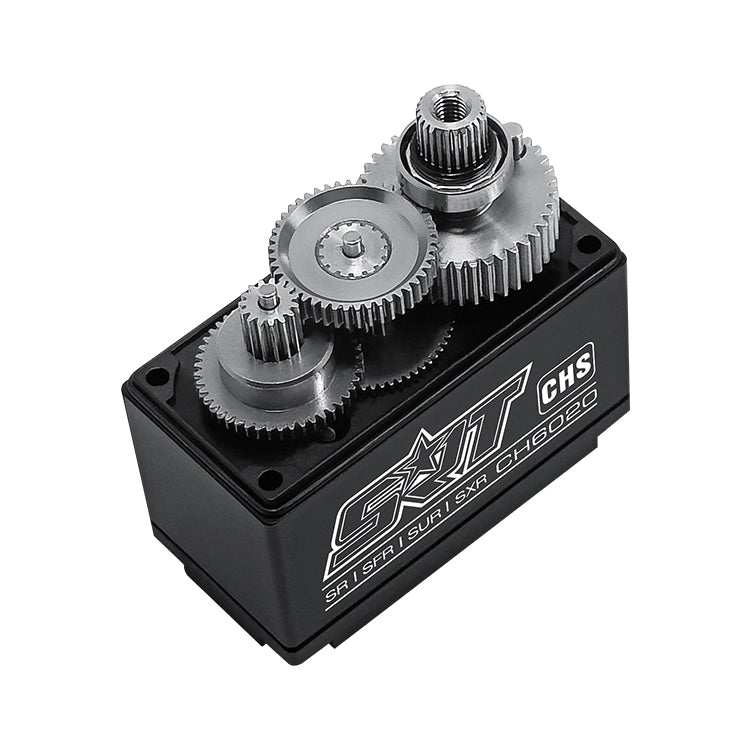

Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
operating speed (8.4v): 0.09 sec/60 degrees at no load
stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
stall torque (8.4v): 20.0kg.cm (277.7 oz/in)
potentiometer drive: direct drive

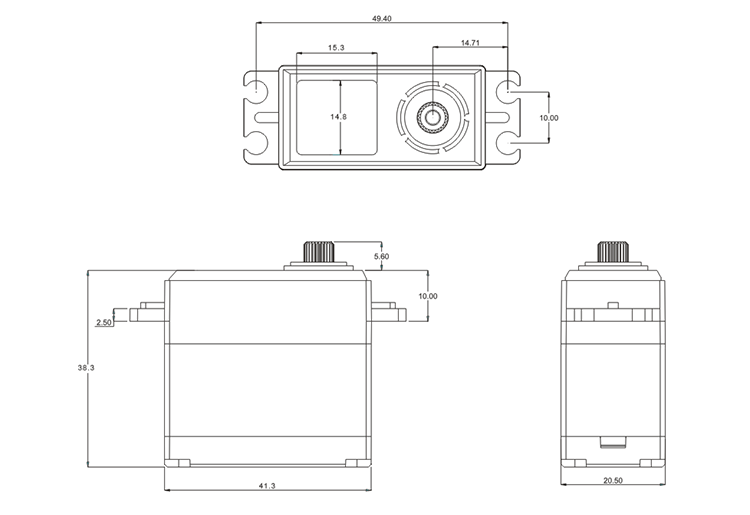

dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm

}
