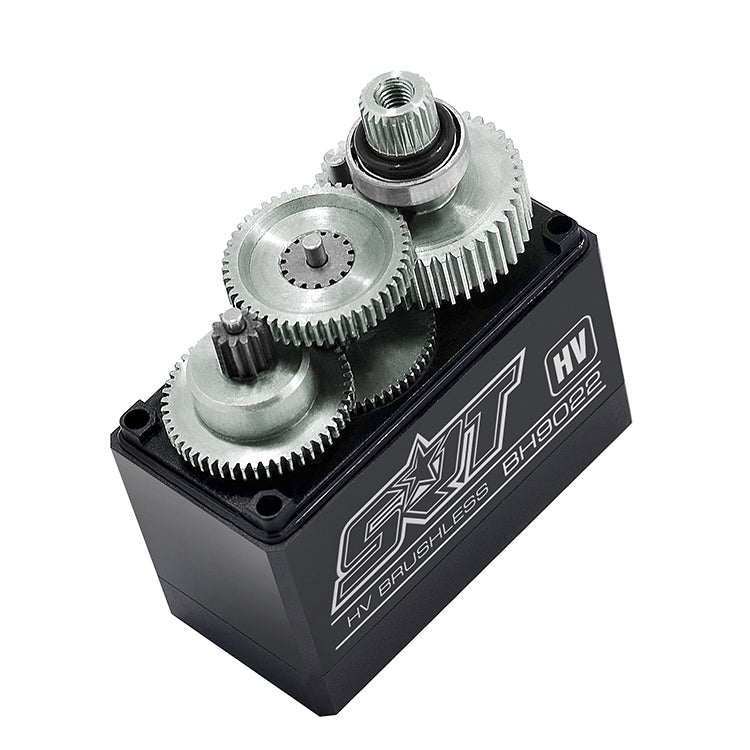

SRT Servo BH9022 1/10 & 1/8 Onroad/Offroad HV (0.06s/8.4V/22kg) Brushless

SRT Servo BH9022 1/10 & 1/8 Onroad/Offroad HV (0.06s/8.4V/22kg) Brushless

SKU BH9022
von SRT
CHF 99.00 - CHF 99.00
CHF 99.00
CHF 99.00 - CHF 99.00
CHF 99.00

Versandinformation

Produkte mit Status "auf Lager", werden bei Bestellungen bis 14.00 Uhr Nachmittags, noch am selben Tag versendet.

Information

Bei Fragen zum Produkt oder detaillierter Informationen zum Bestellvorgang. Ruf uns an!

Telefon: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo BH9022 1/10 & 1/8 Onroad/Offroad HV (0.06s/8.4V/22kg) Brushless

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications
& Superior Holding Speed
& incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& NMB dual main bearings
& 25T output shaft
& HD 4096 Resolution
& 2 μsec Dead Band
& 1-Year Limited Warranty


Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
BH9022 0.085 18.0/249.9 0.065 20.0/277.7 0.06 22.0/305.5 Titanium & Alu Brushless  all-metal 40.0*20.0*38.0 70.0




Application :
SRT BH9022 HV Brushless Servo1/10 1/8 Electric/ Car         SRT BH9022 HV Brushless Servo1/10 1/8 Nitro/ Car                SRT BH9022 HV Brushless Servo 1/10 1/8 Off-road
SRT BH9022 HV Brushless Servo 1/10 On-road                   SRT BH9022 HV Brushless Servo Helicopter


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.085 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.060 sec/60 degrees at no load
stall torque (6.0v): 18.0kg.cm (249.9 oz/in)
stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 70.0g (2.47 oz)
connector wire length: jr 300 mm

}
