Traxxas TRX-4M Chevy K10 High Lift Cheyenne 1/18 4WD Scale Crawler - 97064

TRAXXAS TRX-4M CHEVY K10 4X4 LIFTED 1/18 CRAWLER RTR BRUSHED, MIT AKKU UND USB LADEGERÄT 1/18 4WD SCALE-CRAWLER

Erleben Sie jetzt mit dem TRAXXAS TRX-4M eine neue Form von Spaß und Abendteuer im Maßstab 1/18!

Der TRX-4M schließt die Lücke zwischen der 1/24 und 1/10 Crawler-Szene hinsichtlich Topqualität und Leistung. Ölgefüllte Stoßdämpfer, Rahmenschienen aus Stahl und ein leistungsstarkes Fahrwerk verleihen dem TRX-4M überall im Terrain, ob drinnen oder draußen, überlegene Fahreigenschaften.

Der TRX-4M glänzt überall wo es Spass macht zu fahren. Die sanfte Gasannahme, der drehmomentstarke Motor und ein um 30% engerer Lenkradius ermöglichen es dem TRX-4M, Kletteraktionen in Innenräumen problemlos zu bewältigen und präzise zu manövrieren. Aufgrund der großen Reifen und Bodenfreiheit, sowie der hohen Geschwindigkeit stellt anspruchsvolles Outdoor-Gelände für den kleinen TRX-4M kein Problem dar.

Details im Überblick:


Mit High Lift Kit

Grösseren Reifen

35%mehr Bodenfreiheit als der normale TRM-4M

• Detaillierte lizenzierte ABS-Karosserie

• Splintenlose Karosseriebefestigung

• LED-Stoßstangenbeleuchtung

• Heavy-Duty Stahl-Rahmenschienen

• Unglaublich kleiner 45° Wenderadius

• 4-Link Aufhängung vorne & hinten

• Sperrdifferential vorne & hinten

• Heavy-Duty Mittelantriebswelle

• GTM™ Öldruck-Stoßdämpfer

• BF-Goodrich® Mud Terrain T/A® KM3 Reifen auf detaillierten 1.0" Felgen

• Hex-Felgenadapter 7mm

• Niedriger Batterieschwerpunkt

• Wasserdichte Elektronik

• TQ™ 2,4GHz 2-Kanal Fernsteuerung

• All-In-One ECM-2.5™ Fahrtenregler (inkl. TQ-Empfänger & LED Pro-Scale® Modul*)

• Drei einstellbare Fahrmodi

• Leistungsstarker Titan® 180 87T Motor

• 2s LiPo 750mAh 7.4V 20C und iD® (über 1h Fahrzeit)

• 2-Amp USB iD®-Schnellladegerät

• Heavy-Duty 2065T Lenkservo

• Umfangreiches Tuning-Sortiment erhältlich

*Optionale Pro Scale® LED-Beleuchtung separat erhältlich



Abmessungen:

Länge: 269mm

Breite: 124mm

Höhe: 127mm

Bodenfreiheit: 40mm

Radstand: 162mm

Gewicht: 468g (ohne Akku)

Reifengröße: 61.9 x 25,6mm

Felgengröße: 25,4 x 12,5mm

Dämpferlänge: 51mm

Akkuabmessungen: L50,5mm x B31mm

Notwendiges Zubehör:

• 4x AA Batterien für Sender

HIGH TRAIL PERFORMANCE FOR TRX-4M

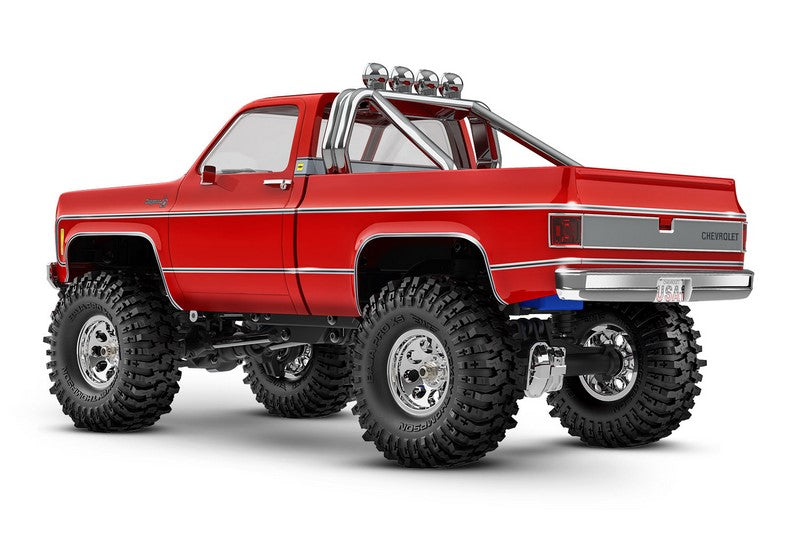

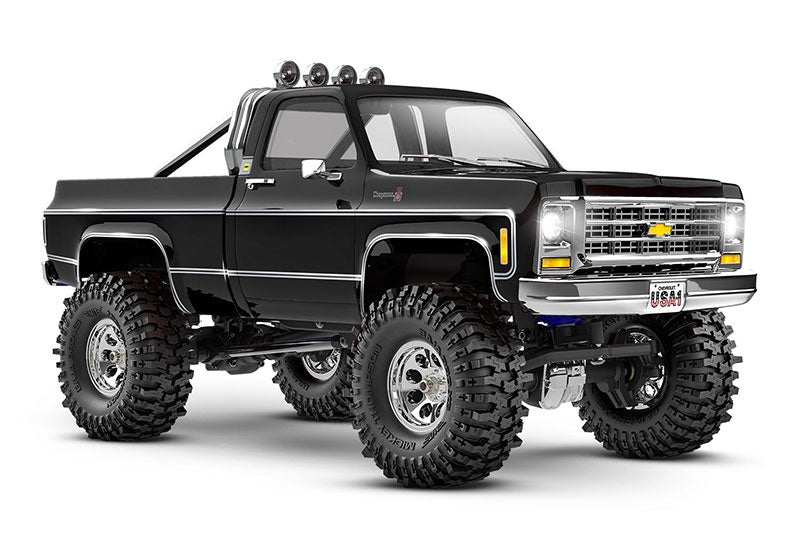

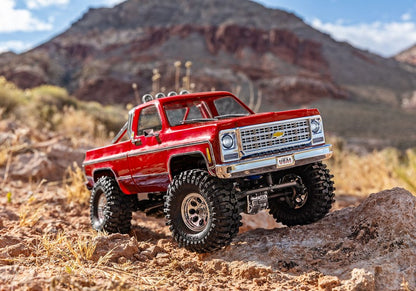

Small-scale adventure takes a big leap in performance with the TRX-4M™ Chevrolet® K10 High Trail™ Edition. The lifted High Trail pickup offers over 35% more center ground clearance than a standard TRX-4M with an extended wheelbase for even more all-terrain capability. Oversize Mickey Thompson® Baja Pro™ XS tires enhance traction and give K10 a dramatic lifted truck profile. From indoor fun to outdoor adventure, TRX-4M K10 High Trail Edition delivers the quality and performance you expect from Traxxas.

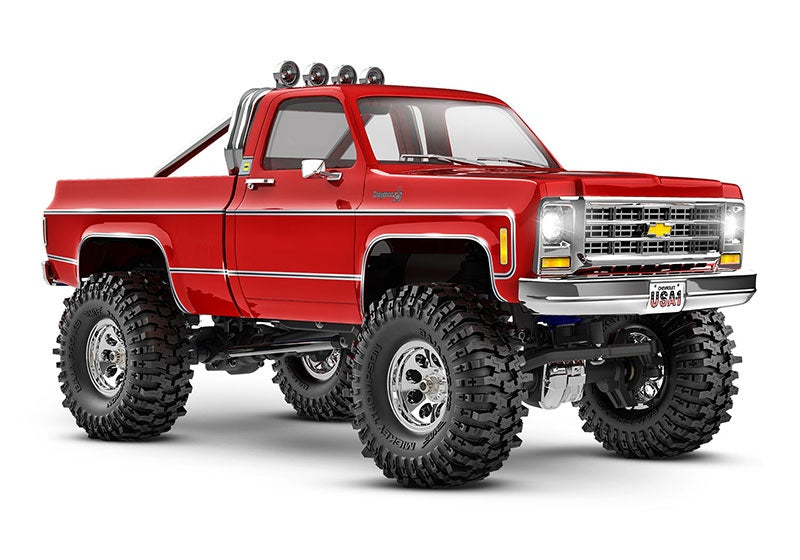

TRX-4M Chevrolet K10 High Trail Edition

Factory Installed Long Arm Lift Kit

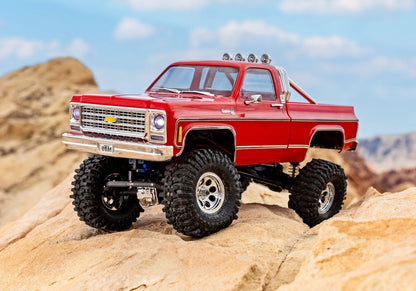

LONG ARM LIFT KIT
The High Trail edition’s Factory Installed Long Arm Lift Kit and larger tires raise the center ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.

New Larger 2.4″ Tires

NEW LARGER 2.4″ TIRES
Larger 2.4″ Mickey Thompson® Baja Pro™ XS replicate the full size tire’s aggressive tread pattern and fill out the High Trail Edition’s wheel wells for an authentic “lifted truck” look. Sticky compound rubber and trail-tuned foam inserts give extra “bite” for superior traction on the trail.

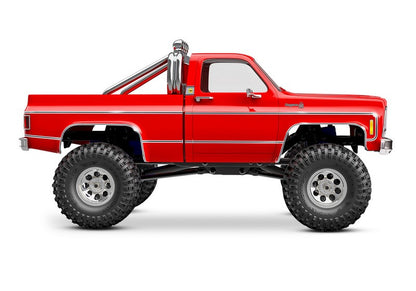

Extended Wheelbase

EXTENDED WHEELBASE
The High Trail Edition’s steel frame rails extend the wheelbase out to 162mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.

Detailed ABS Body With Clipless Mounting

DETAILED CLIPLESS BODY
The TRX-4M Chevrolet K10 clipless body holds tight on the trail but releases in just seconds with a hidden latching system to preserve its clean lines. The tough ABS body featured molded-in color with highly detailed chrome trim for complete scale authenticity.

INNOVATION
K10 High Trail Edition’s Long Arm Lift Kit expands the core features and capabilities of the standard TRX-4M while maintaining its trail-bred suspension geometry.

LIFTED PERFORMANCE

TRX-4M K10 High Trail Edition’s Long Arm Lift Kit and oversize tires raise the center ground clearance 35% higher than the standard truck. Extended links maintain TRX-4M’s superior suspension geometry.

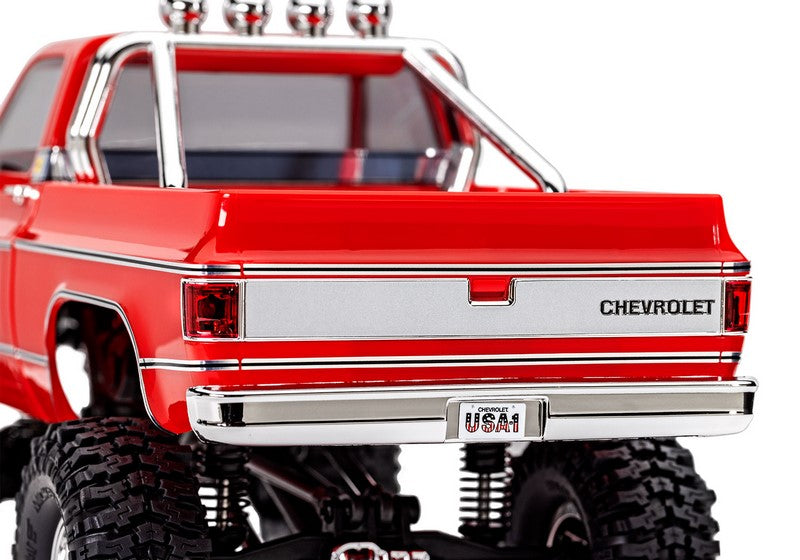

DETAILSRealistic Body Elements
Realistic Body Elements

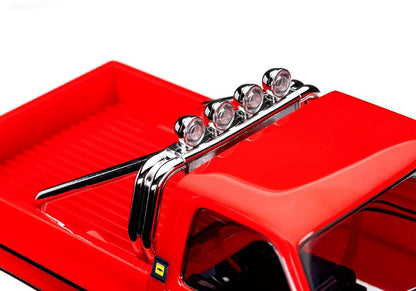

Great care was taken to replicate the Chevrolet K10’s bumpers, chrome trim, and pickup bed in 1/18 scale. Even the smallest features like side mirrors, door handles, and wipers are molded in exacting detail for exceptional scale realism.

Detailed 1.0" Wheels

Detailed 1.0" Wheels
K10 High Trail Edition’s replica 1.0" wheels are authentic scale replicas of classic 8-hole chrome mag wheels. TRX-4M utilizes a standard 7mm hex, making wheel swaps quick and easy.

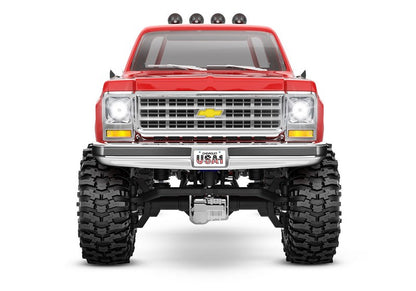

LED Lighting
TRX-4M K10 includes standard LED headlights in the front grille. Add optional Pro Scale LED lights and K10 comes to life with functional brake lights, reverse lights, and even emergency flashers (Pro Scale lights sold separately).

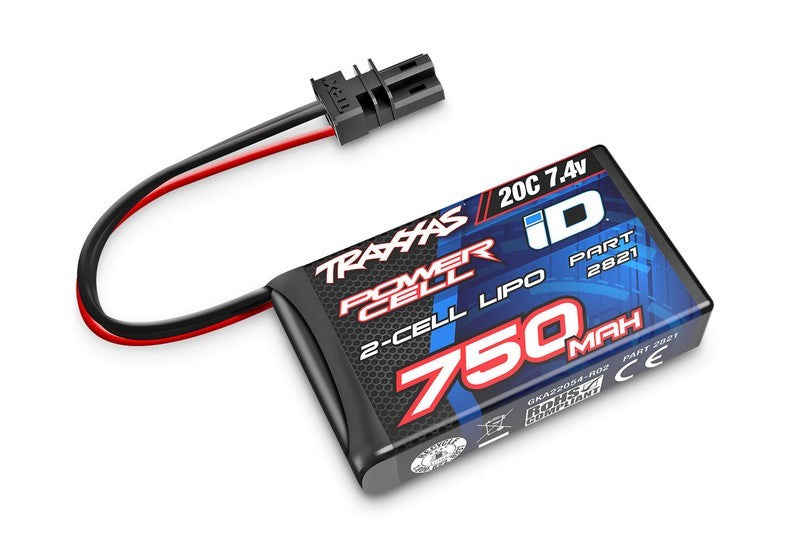

Included 2s LiPo Battery with iD®
The included 2-cell LiPo battery provides 7.4 volts of high-performance power and over an hour of runtime with Traxxas iD® safety and simplicity. The specially-designed iD connector plugs directly into the ECM-2.5.


2-Amp USB Fast Charger with iD®
The included 2-amp USB-A charger provides fast and convenient charging almost anywhere. Traxxas iD technology is the easier and safer way to charge LiPo batteries. Just plug the iD battery in and the charger does the rest. When the LED light turns green, the battery is charged.

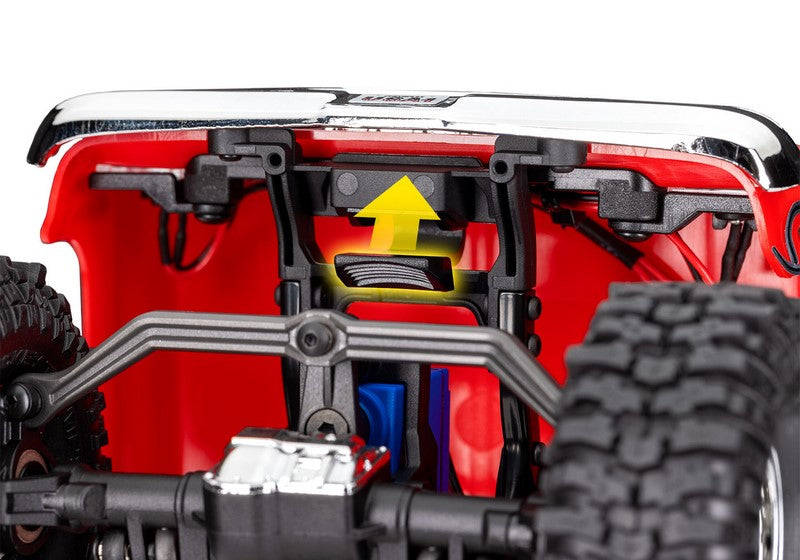

Clipless Body Mounting System
Traxxas’ innovative clipless body mounting solution holds the molded body firmly in place no matter how rough the action gets. A quick pull on the hidden clips releases the body in seconds, with no body clips to lose, ureliable magnets, or messy hook and loop tape.


High-Performance Tires
Licensed Mickey Thompson Baja Pro XS tires are accurate down to the smallest detail with an authentic lug pattern and raised sidewall lettering.


Triangulated Four-Link Suspension

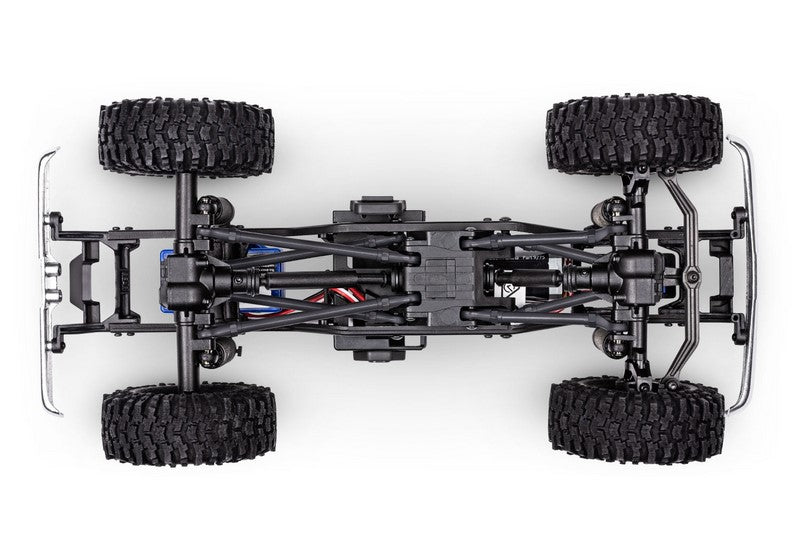

TRX-4M High Trail Edition rides on a lifted four-link suspension with heavy duty triangulated rods. Solid front and rear axles provide excellent articulation to climb over the toughest obstacles.

Heavy Duty Center Driveshafts
TRX-4M’s heavy duty center driveshafts telescope freely to allow maximum suspension travel. Smooth-running CV joints are engineered for long-lasting, trouble-free performance.

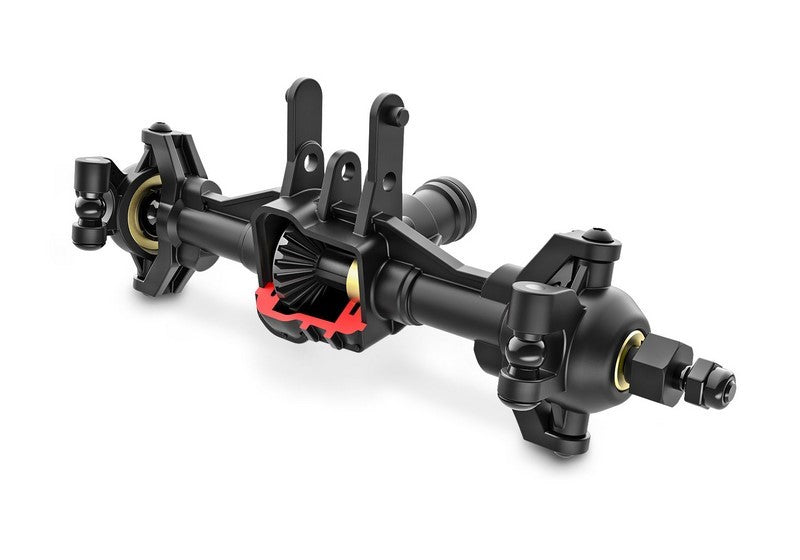

Spool-Equipped Front & Rear Axles
TRX-4M’s front and rear axles are locked with spools to supply non-stop climbing power to all four wheels. Tough, steel constant-velocity (CV) joints allow increased steering angle at the front wheels for tight turns.


Oil-Filled GTM Shocks
TRX-4M’s oil-filled GTM shocks feature dual O-ring seals at the shaft for a perfect seal and smooth performance. Tuned specifically for the TRX-4M, GTM shocks smooth out bumps for a realistic and controlled ride.

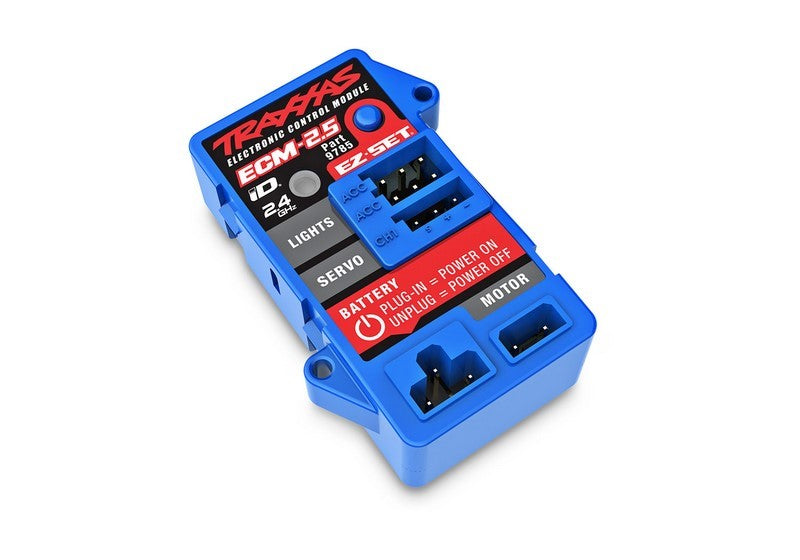

ECM-2.5 Electronic Control Module
ECM-2.5 features low voltage detection for 2s LiPo batteries and EZ-Set® one-button programming to select driving modes. Choose Sport Mode for all-around driving, or Trail Mode for smooth drag braking on steep descents. For a smooth scale look while creeping over technical terrain, Crawl Mode applies full brakes the instant the throttle is released and allows drivers to continue through to reverse without a second push on the trigger.


Low-CG Battery Tray
TRX-4M’s battery tray lies deep in the chassis to concentrate weight as low as possible. A lower center of gravity increases stability and reduces the risk of a rollover. A wide rubber strap keeps the battery safely locked in place and prevents the weight from shifting.


Optional Transmission Ratios
TRX-4M’s modular assembly allows you to swap out different transmissions to change the performance characteristics of the truck. Install the low-range transmission for smooth low-speed torque or boost your top end with the speed gearing option (optional ratios sold separately).

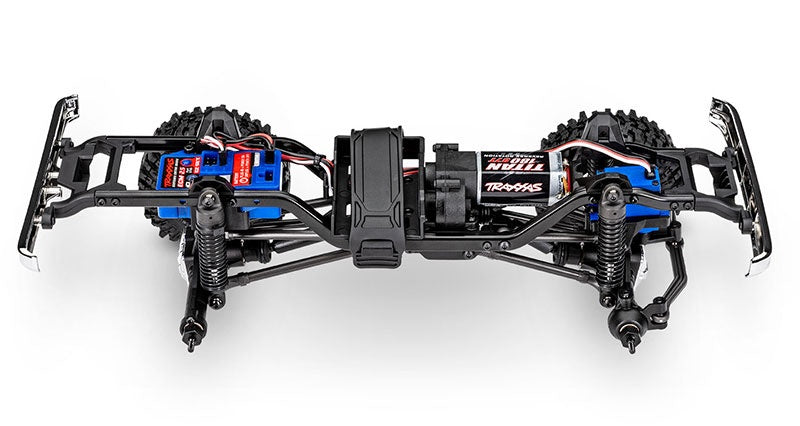

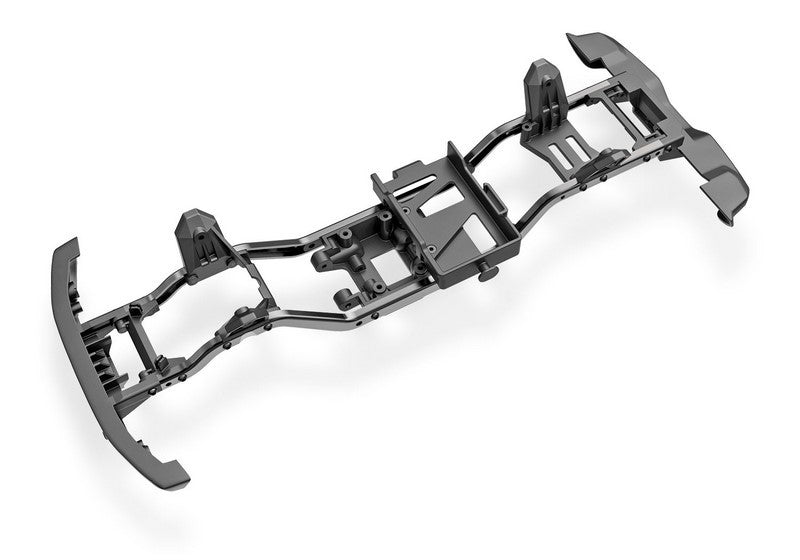

Steel C-Channel Frame Rails
K10 High Trail Edition’s extended heavy duty frame rails are formed with a deep C-channel for maximum rigidity. The rails are taller through the middle section for increased strength where it’s needed most.

Forward-Mounted Motor
The Titan® motor mounts securely to the transmission module with a fixed gear mesh that never needs adjustment. The motor’s mounting position shifts the weight bias forward for improved crawling dynamics over obstacles.


Heavy Duty Steering Servo
TRX-4M’s heavy duty 2065T servo operates on full 6-volt power with a metal main gear for precise control and powerful steering authority. The rugged one-piece drag link sits high up in the axle to avoid snags and impacts.


High-Quality Hardware
TRX-4M rides on low maintenance self-lubricating bushings for long lasting performance. TRX-4M is assembled with high-quality hex hardware for long-term durability and secure fastening.


Make sure you don’t miss any of the latest 1/18th Scale TRX-4M news, accessories, and updates.
STAY UPDATED


Special Edition - 1/18 TRX-4M Chevrolet K10 High Trail Edition (#97064-1) Special Edition - 1/18 TRX-4M Chevrolet K10 High Trail Edition (#97064-1)


TRX-4M Chevrolet K10 High Trail Edition (#97064-1) Specifications

Length: 10.6 inches (269mm)
Front Track: 5.0 inches (127mm)
Rear Track: 5.0 inches (127mm)
Center Ground Clearance: 1.57 inches (40mm)
Weight (with battery): 1.03lbs (468g)
Height: 5.0 inches (127mm)
Wheelbase: 6.38 inches (162mm)
Approach Angle: 62°
Breakover Angle: 51.5°
Departure Angle: 52°
Shock Length (front and rear): 2.0 inches (51mm)
Hex Size: 7mm
Differential Type: Fully Locked; 2:1 Axle Ratio
Wheels (front and rear): 1.0 x 0.49 inches (25.4 x 12.5mm)
Tires (front and rear): 2.4 x 1.0 inches (61.9 x 25.6mm)
Electronic Control Module: ECM-2.5™ (Combo ESC, Receiver, Lighting Control*)
Motor (electric): Titan® 180 87T
Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft-Driven 4WD
Steering: Axle-Mounted Servo

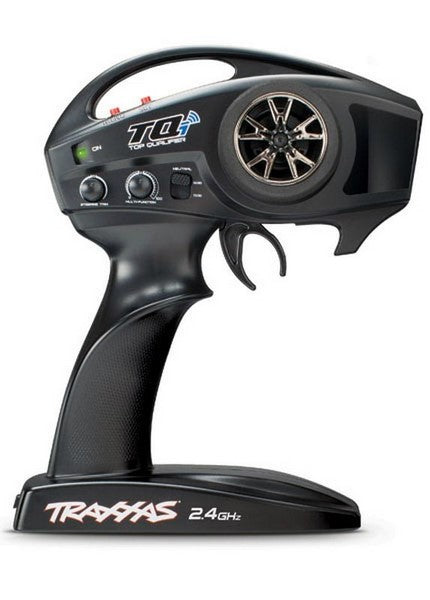

Radio System: TQ™ 2.4GHz 2-Channel Transmitter
Servo: #2065T Heavy Duty Waterproof
Skill Level: 1
Battery Tray: 50.5mm L X 31mm W
*Requires accessory Pro Scale LED Light Kit, sold separately
