SRT Servo M11 1/12 Pan Car HV (0.055s/8.4V/9kg) Coreless

SRT Servo M11 1/12 Pan Car HV (0.055s/8.4V/9kg) Coreless

SKU M11
von SRT
Ausverkauft
CHF 75.00 - CHF 75.00
CHF 75.00
CHF 75.00 - CHF 75.00
CHF 75.00

Versandinformation

Produkte mit Status "auf Lager", werden bei Bestellungen bis 14.00 Uhr Nachmittags, noch am selben Tag versendet.

Information

Bei Fragen zum Produkt oder detaillierter Informationen zum Bestellvorgang. Ruf uns an!

Telefon: +41 44 500 84 66

Email: support@rcxx.shop

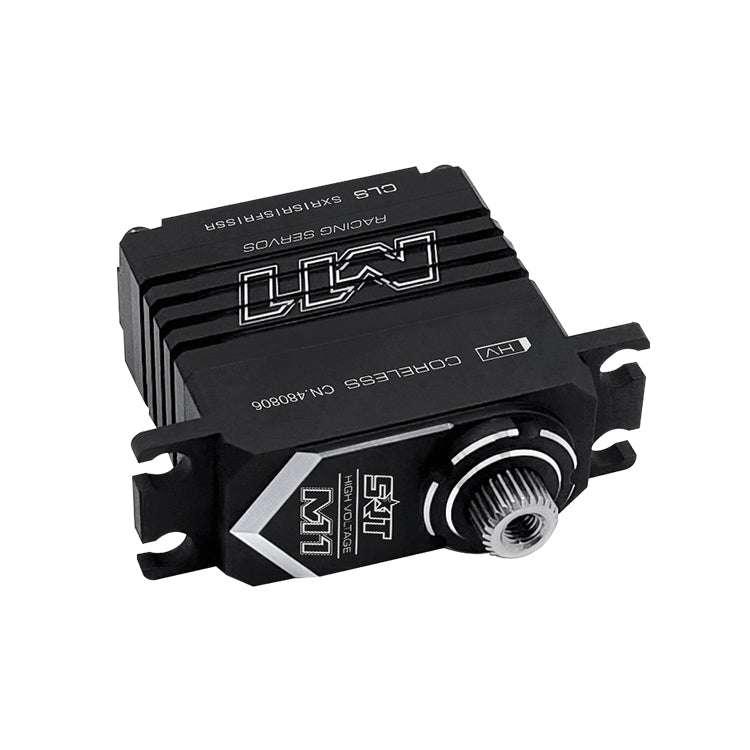

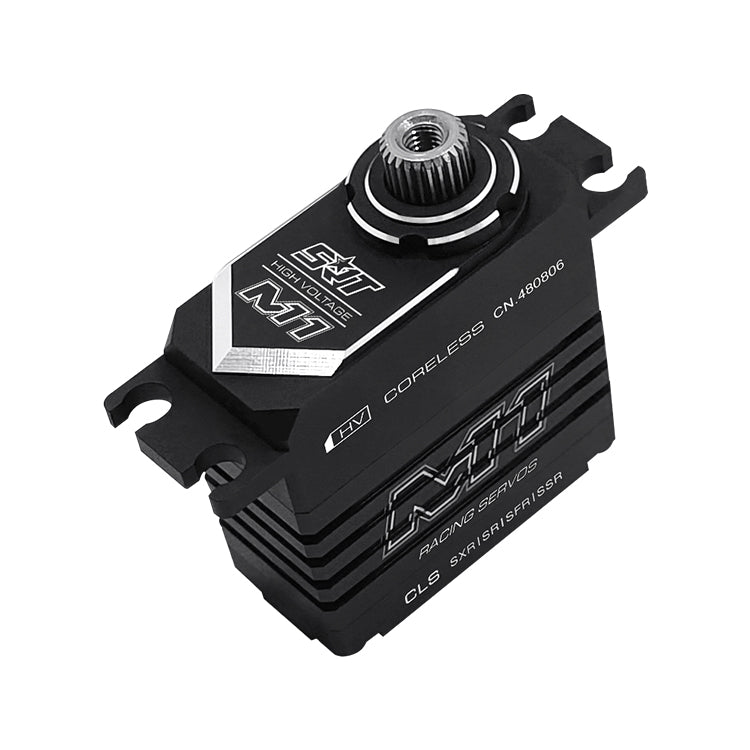

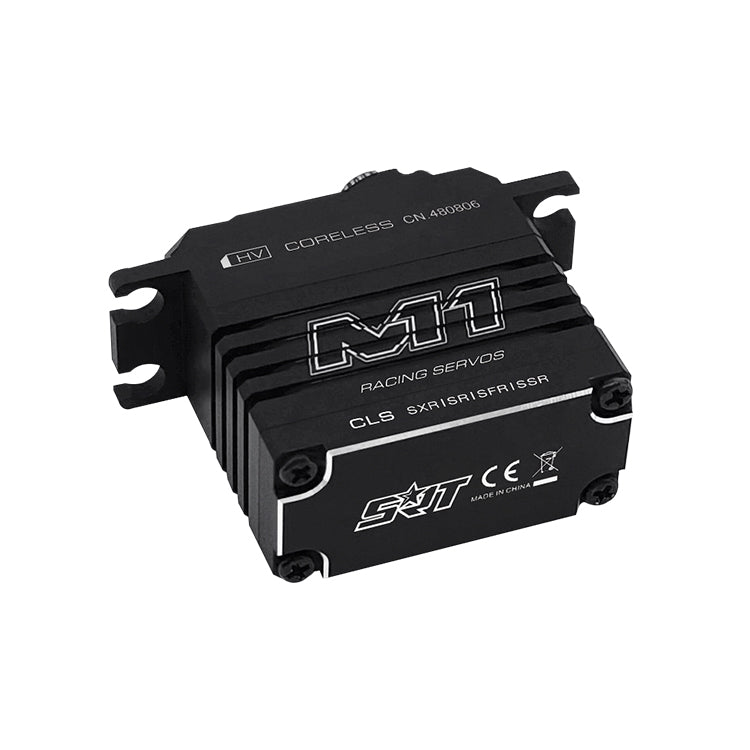

SRT Servo M11 1/12 Pan Car HV (0.055s/8.4V/9kg) Coreless

KEY FEATURES

& Special 1/12 pancar servo

& Supporting SXR, SFR, SR, SSR multiple ultra high speed modes

& Incredible efficiency and low power consumption

& 2 μsec Dead Band

& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
M11  0.07 7.0/97.2        0.065 8.0/111.1        0.055 9.0/125.0        Titanium & Steel  Coreless  all-metal  28.5*13.4*29.0  28.0


Application :
SRT M12 1/12 Pancar HV CORELESS Servo1/12 Pancar             SRT CH712S 1/10Scale On-road HV Servo  1/12 Electric/ Car




PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 333hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.07 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.055 sec/60 degrees at no load
stall torque (6.0v): 7.0kg.cm (97.2 oz/in)
stall torque (7.4v): 8.0kg.cm (111.1 oz/in)
stall torque (8.4v): 9.0kg.cm (125.0 oz/in)
potentiometer drive: direct drive
dimensions: 28.5x13.4x29.0 mm /1.12x0.53x1.14 in
weight: 28.0g (1.0 oz)
connector wire length: jr 170 mm

}
