SRT Servo CH6035 1/5 Onroad/Offroad HV (0.14s/8.4V/35kg) Coreless

SRT Servo CH6035 1/5 Onroad/Offroad HV (0.14s/8.4V/35kg) Coreless

SKU CH6035
von SRT
CHF 59.00 - CHF 59.00
CHF 59.00
CHF 59.00 - CHF 59.00
CHF 59.00

Versandinformation

Produkte mit Status "auf Lager", werden bei Bestellungen bis 14.00 Uhr Nachmittags, noch am selben Tag versendet.

Information

Bei Fragen zum Produkt oder detaillierter Informationen zum Bestellvorgang. Ruf uns an!

Telefon: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo CH6035 1/5 Onroad/Offroad HV (0.14s/8.4V/35kg) Coreless

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications,  as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& 2 μsec Dead Band
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
CH6035 0.16 30.0/416.6 0.15 32.0/444.4 0.14 35.0/486.1 Titanium & Steel Coreless  Semi-metal 40.7*20.5*38.5 75.0


Application :
1/5 Electric/ Car         1/5 Nitro/ Car                  1/5 Off-road
 1/5 On-road              Air plane


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.15 sec/60 degrees at no load
operating speed (8.4v): 0.14 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
stall torque (7.4v): 32.0kg.cm (444.4 oz/in)
stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
potentiometer drive: direct drive

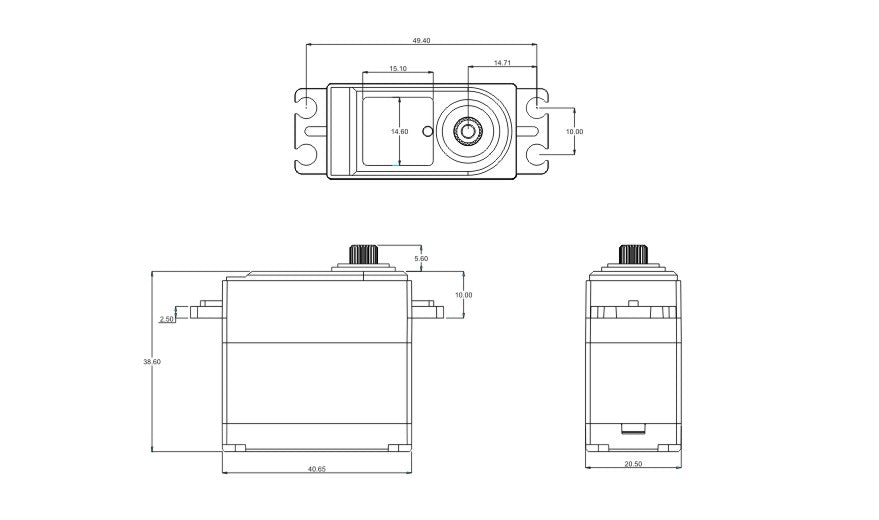

dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
weight: 75.0g (2.65 oz)
connector wire length: jr 250 mm

}
