MKS Servo DS1220 (0.14s/30.4kg/6.8V) Coreless
Accepted payment methods
In stock, ready to ship
Drop us a line, we'll help right away
Questions? We're here for you personally.
Usually reply within minutes during opening hours.
Description

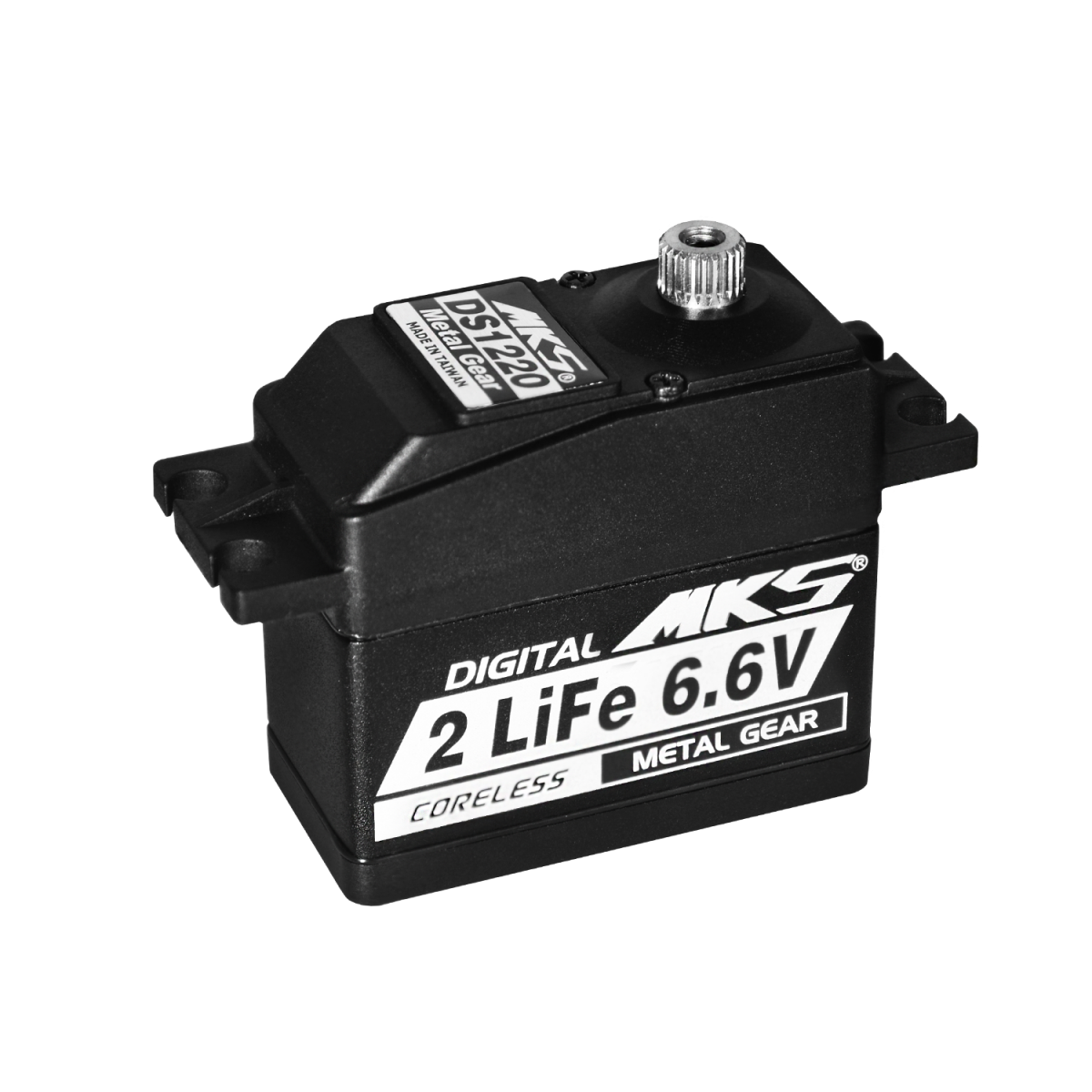

MKS Servo DS1220 (0.14s/30.4kg/6.8V) Coreless
MKS Servo is a manufacturer from Taiwan specializing in high quality and precise servo motors for RC model building, known for their performance and reliability in competitive environments. Located in the high-price segment, MKS Servo offers innovative servo technology that ensures high positioning accuracy and durability for demanding hobbyists and professionals. Their products are recognized in the RC community for top quality and outstanding performance.
Ideal for 1/10, 1/8, 1/5 scale buggies, stadium truck, monster truck, rock crawlers, giant planes, helicopters
- Three copper sockets / Strong, precise
- Waterproof bearing/dustproof, waterproof
- Metal alloy gear/wear-resistant, smooth
- Medium aluminum housing / high heat dissipation
- Japanese High Quality Coreless Motor / Competition Level, High Performance, Fast Response, Equivalent to DS670.
- Offers high torque, incredible efficiency and low power consumption.
| SERVO SPECIFICATION | |
| Torque (kg-cm) | 24.9 (6.0V) / 30.4 (6.8V) |
| Torque (oz-in) | 345.8 (6.0V) / 422.18 (6.8V) |
| speed | 0.159s (6.0V) / 0.140s (6.8V) |
| Stall Current (at locked load) | 4.1A (6.0V) / 4.6A (6.8V) |
| Working voltage | 3.8 ~ 6.8V DC Volts |
| Working Frequency | 1520μs / 333Hz |
| Deadband | 0.0008ms (default) |
| Bearing | 2* Ball Bearings |
| Gear | Metal Alloy Gear |
| engine | Japanese-made coreless motor |
Specifications
- Brand
- MKS
- Tags
- 0.14s, 30.4kg, 6.8V, elektronik, servoweek, standard size
- SKU
- DS1220
