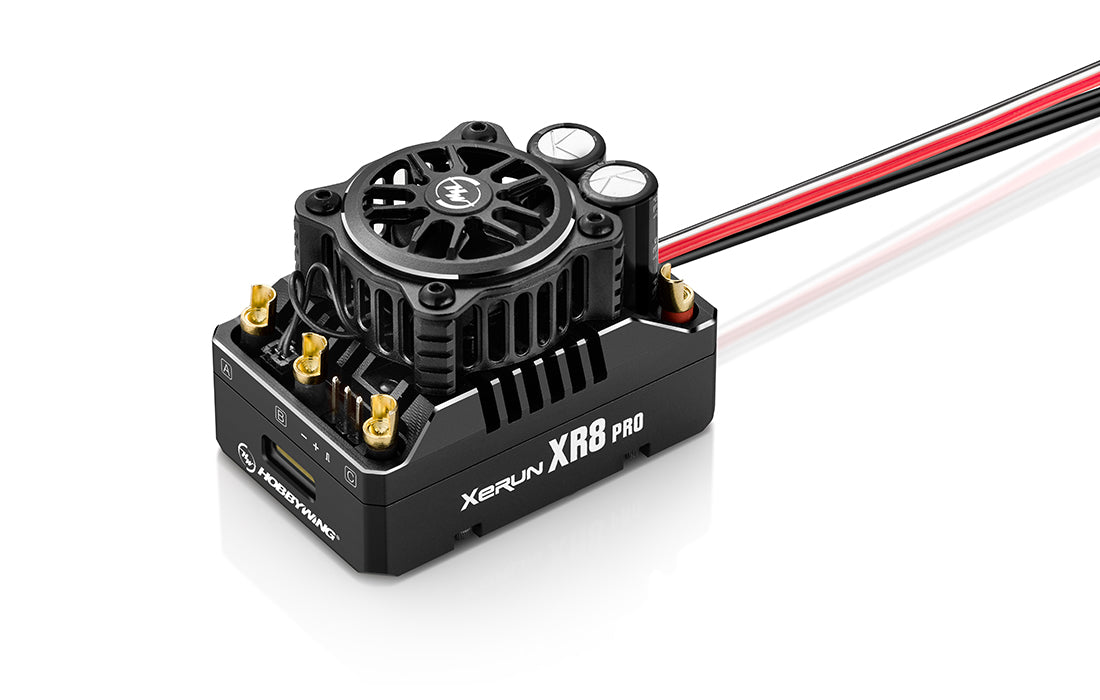

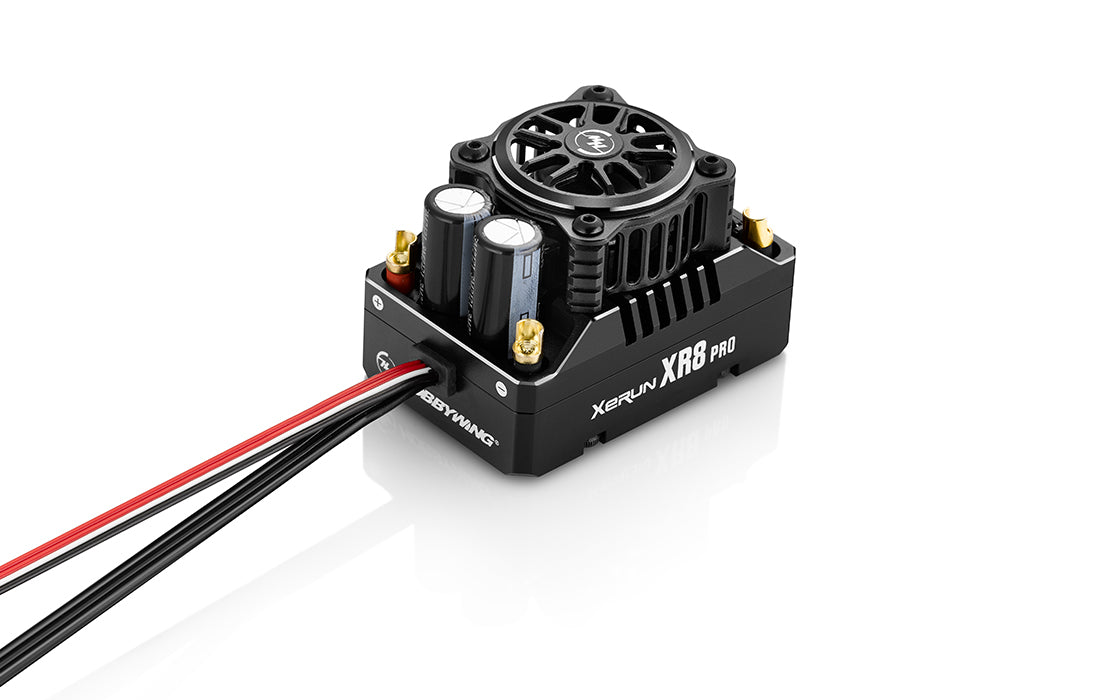

Hobbywing XeRun XR8 Pro G3 200A - Black

Compact and capable carry light on the field

The new XR8 Pro G3 ESC is 1.3mm shorter, and 5.3mm narrower compared
to its predecessor. The overall footprint is reduced by approximately 15%,
The all-new fully sensored XR8 PRO G3 ESC meets the needs of
high-end 8th scale racing applications with its strong explosive power,
ultra large output power(200a), while having excellent low-speed linearity.
Excellent hardware design combined with innovative
smart freewheeling technology enables the ESC to have
higher drive efficiency and lower operating
temperature. Compared with the XR8 Pro G2, the
maximum temperature is reduced by approximately
15°C, and the ESC is stable and reliable.

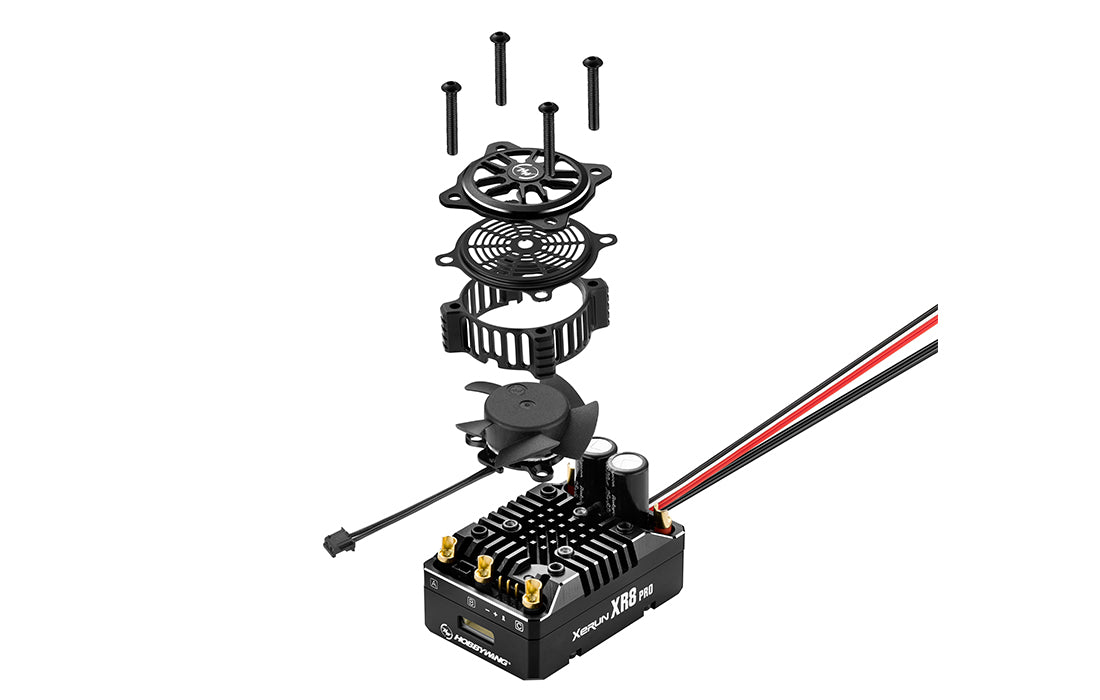

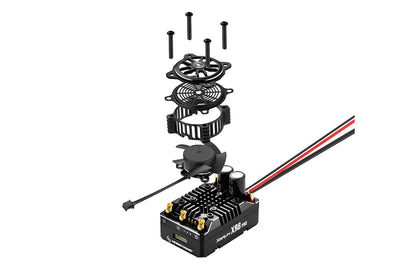

Frameless fan,
efficient and durable


The frameless fan blade is designed with
the use of specially formulated material to
reduce the defective rate of the fan
caused by impact from small stones,
sand and other foreign objects.

Intelligent fan start/stop,
noise reduction and
power saving


The fan of the ESC does not work when the
temperature is low. The fan will automatically
turn on when the temperature rises to the pre-set
value. The intelligent start and stop function of
the fan not only reduces noise, saves power,
but also ensures that the ESC works in a good
temperature range.

Advanced Boost & Turbo Timing Technology

The XR8 Pro G3 ESC performs the best when it is paired with the recommended HOBBYWING motor.
It inherits the same Turbo Timing technology used on the XR10 Pro series used in 1/10th On-Road
and Off-Road competition.This ESC is able to support up to 48 degrees of Boost and Turbo Timing.
There is a 50% increase in performance and is only recommended
to pair with the new HOBBYWING 4268/4274 G3 motors.

Built-in reverse polarity
protection circuit,
reinforced protection

The ESC is reverse polarity protected.
In an event when a user makes a mistake by reversing the polarity,
the ESC will not be broken.
Real-time data
recording function,
easy to obtain
power running status
After connecting the OTA module box, turn on
real-time data recording function to access the
operating status.

Capacitor Thermal
Protection

Capacitor thermal protection is
designed and implemented into the
ESC and will effectively prevent
capacitors from exploding and causing
irreversible damage to the ESC due to overload
Superior Dustproof Protection

The ESC is IP5X rated. It has a superior dustproof
protection to protect the ESC
in all types of environments.
In addition, the ESC is equipped with a small protective
cover for better fan protection.

Small Protective Cover

Custom ultra-soft
11AWG silicone wire
The ultra-soft 11AWG silicone wire is specially
chosen for this product. The wire is ultra-flexible
and low in resistance, making it the perfect
combination to for your electronics.
Specifications:
Product Name XeRun XR8 Pro G3
Product Number 30113400
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

OTA Programmer

Programming Port
Fan Size

Output Wires

Input Connectors
Data Recording Extreme value

Real-time Data

Historical data (Graph)
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Motors

Vehicles
Product Name XeRun XR8 PRO G3
Product Number 30113400
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof		 1/8th

BL

SD

No
Specifications Cont./Peak Current

Input Voltage

BEC Output		 200A/1080A

2-4S Lipo

6V/7.4V Adjustable, Continuous Current: 6A(Switch-mode)
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors		 Black-11AWG-200MM*2

Black-11AWG-200MM*3

No

No
ESC Programing via SET Button on ESC

LED Program Box

LCD G2 Program Box

OTA Programmer

Programming Port		 Not Supported

Not Supported

Supported

Supported

Independent programming port
Fan Size

Output Wires

Input Connectors		 30x30x10mm

5-8.4V

Powered by BEC
Data Recording Extreme value

Real-time Data

Historical data (Graph)		 Supported

Supported

Supported
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight		 54.8X36.8X38.8mm

102.8g
Applications Motors

Vehicles		 4268 3660 size motor

1/8thOff-road,On-road Racing & 1/10th Short course truck,Monster truck



}
