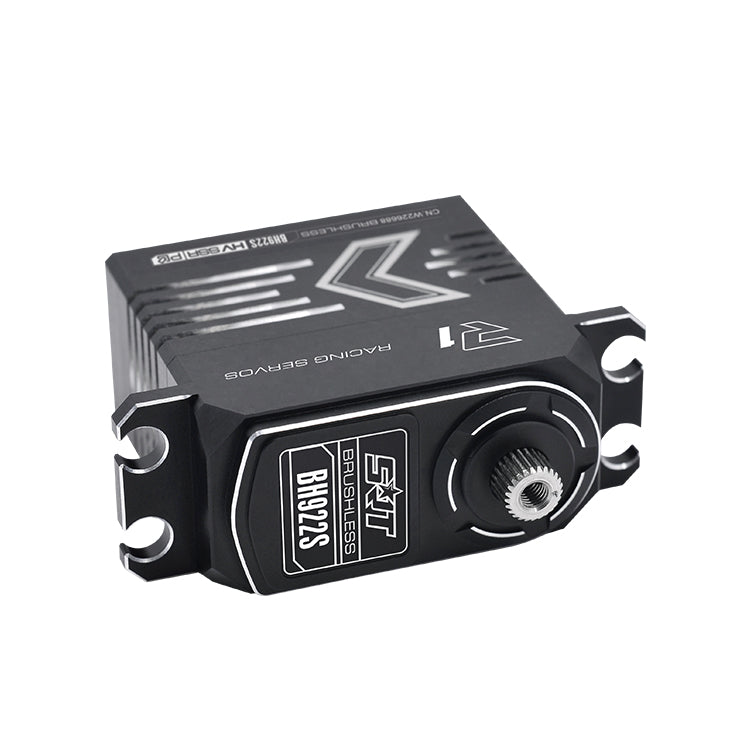

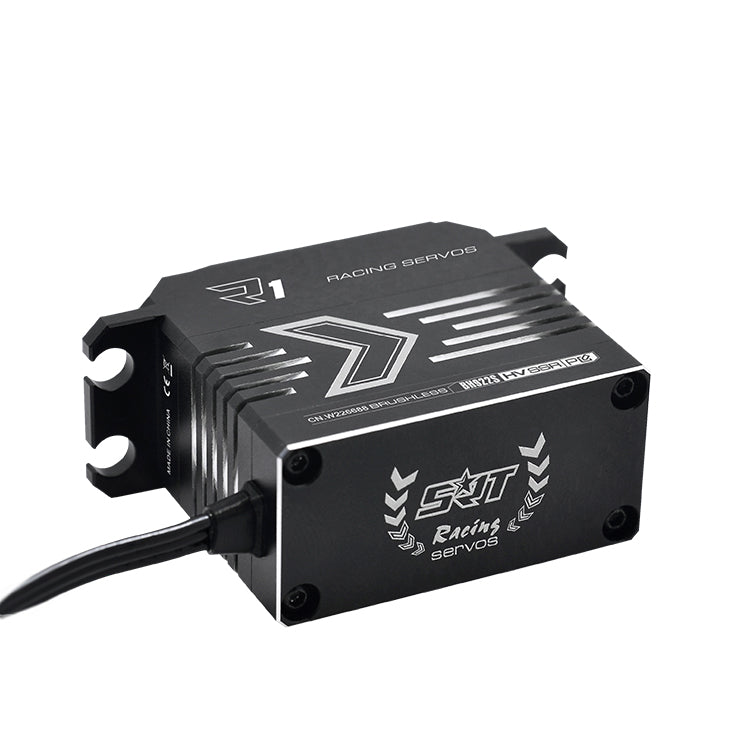

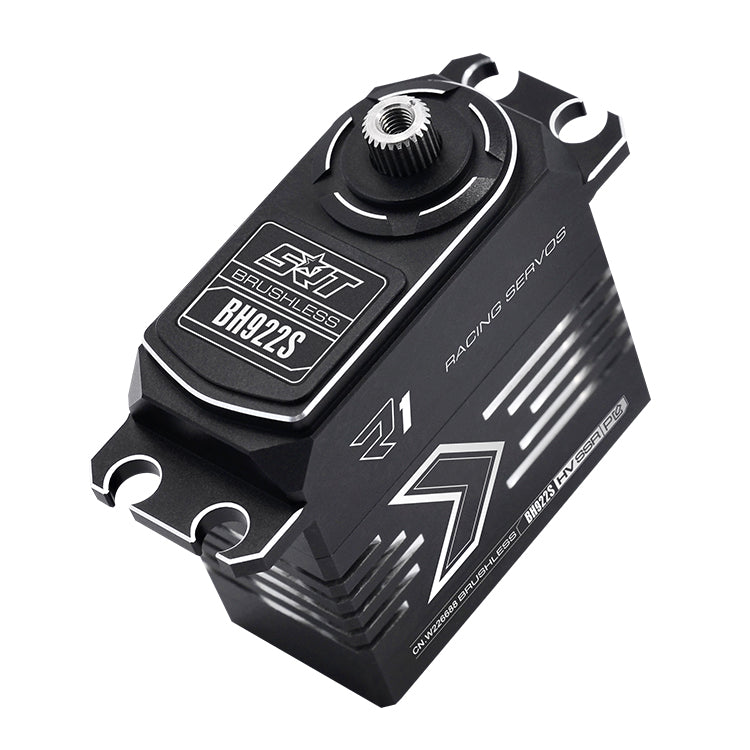

SRT Servo BH922S 1/10 & 1/8 Onroad/Offroad HV (0.055s/8.4V/22kg) Brushless

SRT Servo BH922S 1/10 & 1/8 Onroad/Offroad HV (0.055s/8.4V/22kg) Brushless

UGC BH922S
par SRT
CHF 124.00 - CHF 124.00
CHF 124.00
CHF 124.00 - CHF 124.00
CHF 124.00

Informations sur l'envoi

Les produits avec le statut "en stock" sont expédiés le jour même pour les commandes passées avant 14h00.

Information

Bei Fragen zum Produkt oder detaillierter Informationen zum Bestellvorgang. Ruf uns an!

Telefon: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo BH922S 1/10 & 1/8 Onroad/Offroad HV (0.055s/8.4V/22kg) Brushless

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications
& Superior Holding Speed
& incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& NMB dual main bearings
& SSR mode compatible
& 25T output shaft
& HD 4096 Resolution
& 2 μsec Dead Band
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
BH922S 0.08 17.0/236.1 0.06 20.0/277.7 0.055 22.0/305.5 Titanium & Steel Brushless all-metal 40.0*20.0*38.0 70.0



Application :
1/10 1/8 Electric/ Car  1/10 1/8 Nitro/ Car   1/10 1/8 Off-road
1/10 On-road             Helicopter

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.08 sec/60 degrees at no load
operating speed (7.4v): 0.06 sec/60 degrees at no load
operating speed (8.4v): 0.055 sec/60 degrees at no load
stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 70.0g (2.47 oz)
connector wire length: jr 300 mm

}
