SRT Servo W25 1/10 & 1/8 Offroad HV WATERPROOF (0.14s/7.4V/25kg) Digital

SRT Servo W25 1/10 & 1/8 Offroad HV WATERPROOF (0.14s/7.4V/25kg) Digital

SKU W25
von SRT
CHF 58.00 - CHF 58.00
CHF 58.00
CHF 58.00 - CHF 58.00
CHF 58.00

Versandinformation

Produkte mit Status "auf Lager", werden bei Bestellungen bis 14.00 Uhr Nachmittags, noch am selben Tag versendet.

Information

Bei Fragen zum Produkt oder detaillierter Informationen zum Bestellvorgang. Ruf uns an!

Telefon: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo W25 1/10 & 1/8 Offroad HV WATERPROOF (0.14s/7.4V/25kg) Digital

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications
& Intermediate aluminum case
& NMB dual main bearings
& Superior waterproof
& 25T output shaft
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
 W25   0.16 23.0/319.4 0.14 25.0/347.2 N/A N/A Copper & Aluminum DC all-metal  40.7*20.5*38.6 72.0


Application :
SRT W25 HV Digital Waterproof Servo 1/10/8  / Off-road          SRT W25 HV Digital Waterproof Servo 1/10/8 Off-road          SRT W25 HV Digital Waterproof Servo1/10/8 / Off-road
SRT W25 HV Digital Waterproof Servo Electric/ BOAT


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Aluminum
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-7.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.14 sec/60 degrees at no load
stall torque (6.0v): 23.0kg.cm (319.4 oz/in)
stall torque (7.4v): 25.0kg.cm (347.2 oz/in)
potentiometer drive: direct drive

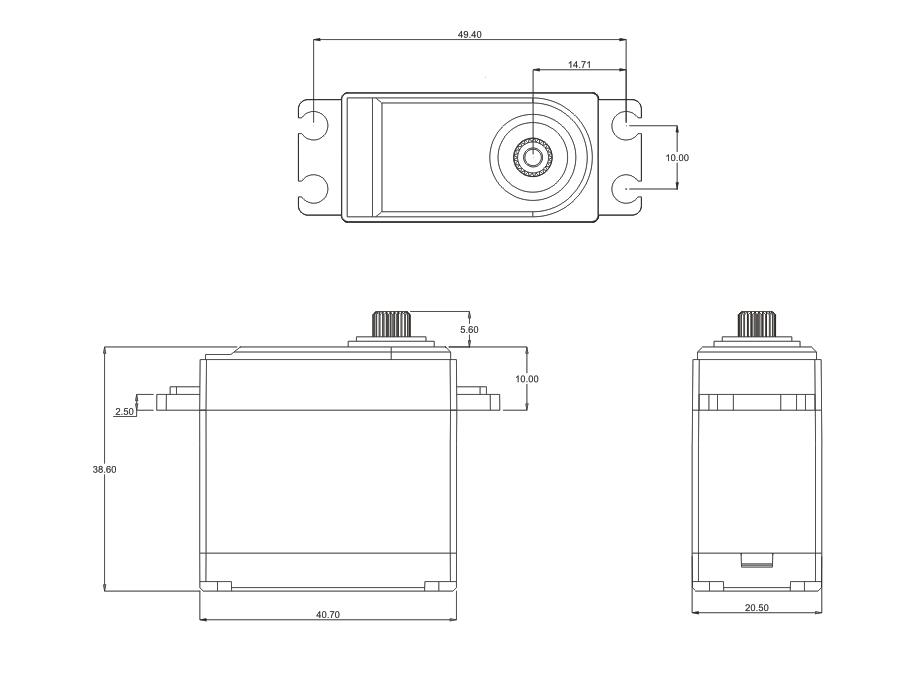

dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
weight: 72.0g (2.54 oz)
connector wire length: jr 360 mm

}
