CH7015
KEY FEATURES
& Ideal for 1/10 on road scale applications, as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& Titanium & Alu gears for precision and durability
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& HD 4096 Resolution
& 2 μsec Dead Band
& Superior Holding Torque
& 1-Year Limited Warranty
Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) |
Weight (g) |
|||
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
CH7015 | 0.10 | 12.0/166.6 | 0.08 | 13.0/180.5 | 0.07 | 15.0/208.3 | Titanium & Alu | Coreless | all-metal | 41.0*20.0*26.4 | 52.0 |
Application : 1/10 Electric/ Car
1/10 Nitro/ Car
2WD/4WD Off-road
On-road
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.10 sec/60 degrees at no load
operating speed (7.4v): 0.08 sec/60 degrees at no load
operating speed (8.4v): 0.07 sec/60 degrees at no load
stall torque (6.0v): 12.0kg.cm (166.6 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive

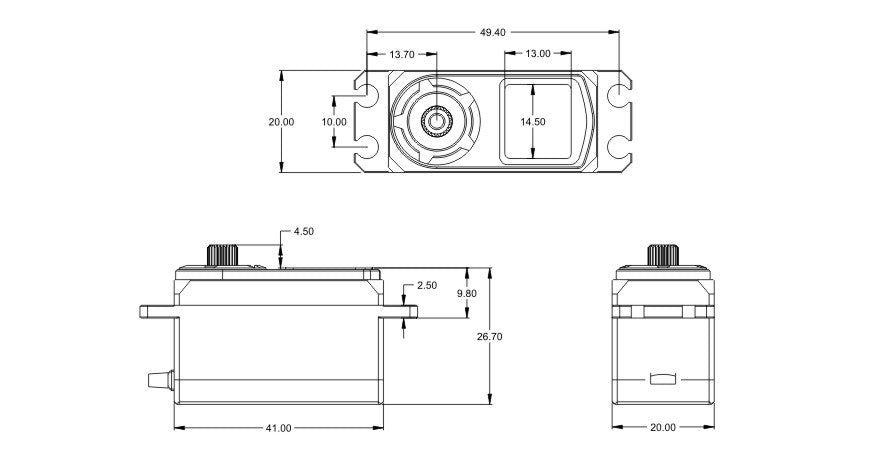

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 180 mm
Titel | SRT Servo CH7015 1/10 Onroad/Offroad HV (0.07s/8.4V/15kg) |
---|
