SRT Servo W45 1/10 & 1/8 Offroad HV WATERPROOF (0.18s/8.4V/45kg) Coreless

SRT Servo W45 1/10 & 1/8 Offroad HV WATERPROOF (0.18s/8.4V/45kg) Coreless

SKU W45
SRT
CHF 75.00 - CHF 75.00
CHF 75.00
CHF 75.00 - CHF 75.00
CHF 75.00

Informazioni sulla spedizione

I prodotti con lo stato "in stock" saranno spediti il giorno stesso se ordinati entro le 14.00.

Information

Bei Fragen zum Produkt oder detaillierter Informationen zum Bestellvorgang. Ruf uns an!

Telefon: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo W45 1/10 & 1/8 Offroad HV WATERPROOF (0.18s/8.4V/45kg) Coreless

KEY FEATURES

& Ideal for 1/10 on road and 1/8 off road scale applications
& Intermediate aluminum case
& NMB dual main bearings
& Superior waterproof
& 25T output shaft
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)		 Weight
(g)
Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in		 Speed:
sec/60°		 Torque:
kg-cm/oz-in
W45 0.20 34.0/472.2 0.19 40.0/555.5 0.18 45.0/624.9 Titanium & Steel Coreless all-metal 40.7*20.5*38.6 82.5


Application :
SRT W45 HV Coreless Waterproof Servo 1/10/8  / Off-road           SRT W45 HV Coreless Waterproof Servo 1/10/8 Off-road          SRT W45 HV Coreless Waterproof Servo1/10/8 / Off-road
SRT W45 HV Coreless Waterproof Servo Electric/ BOAT


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.20 sec/60 degrees at no load
operating speed (7.4v): 0.19 sec/60 degrees at no load
operating speed (8.4v): 0.18 sec/60 degrees at no load
stall torque (6.0v): 34.0kg.cm (472.2 oz/in)
stall torque (7.4v): 40.0kg.cm (555.5 oz/in)
stall torque (8.4v): 45.0kg.cm (624.9 oz/in)
potentiometer drive: direct drive

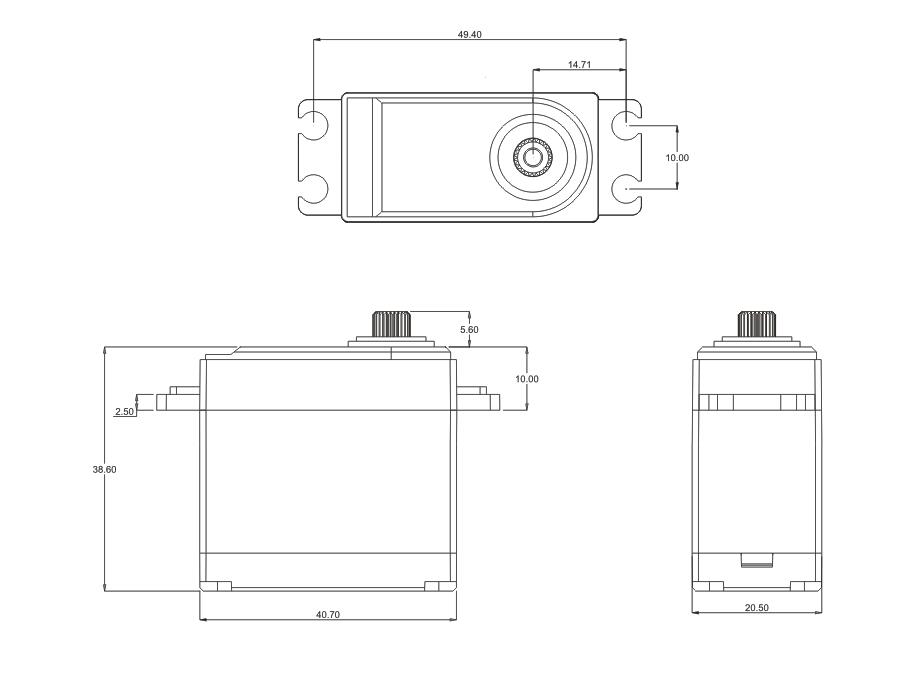

dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
weight: 82.5g (2.91 oz)
connector wire length: jr 360 mm

}
