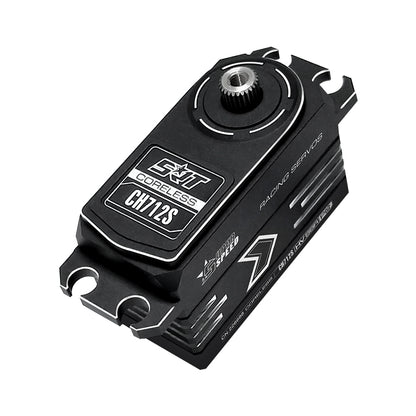

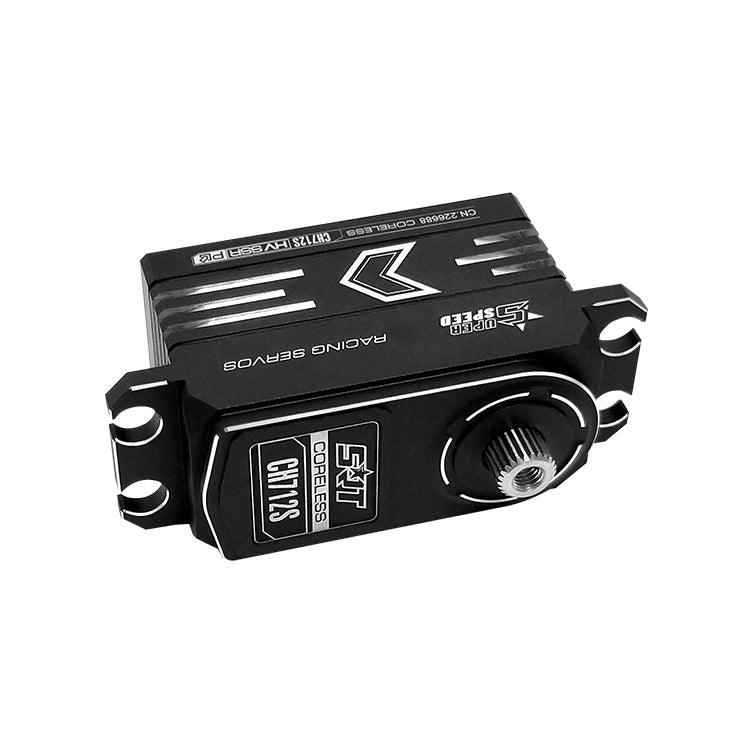

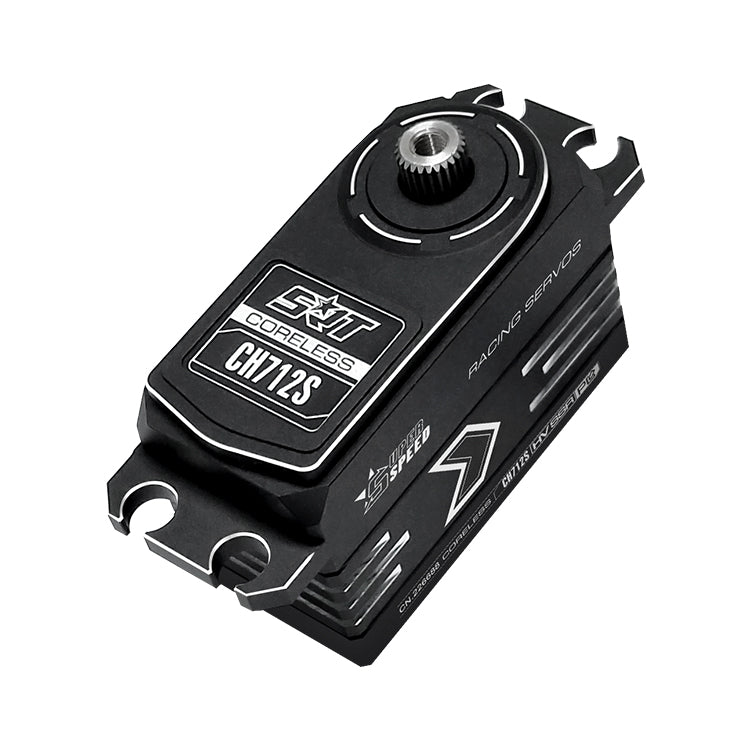

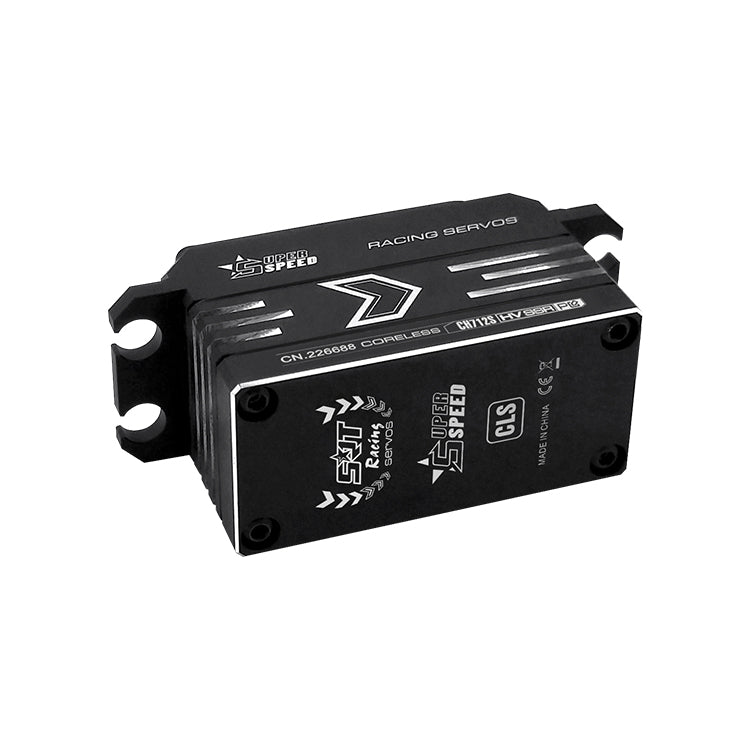

SRT Servo CH712S 1/10 Onroad/Offroad HV (0.049s/8.4V/12.6kg)

UGC CH712S
par SRT
Prix d'origine CHF 86.00 - Prix d'origine CHF 86.00
Prix d'origine
CHF 86.00
CHF 86.00 - CHF 86.00
Prix actuel CHF 86.00

Informations sur l'envoi

Les produits avec le statut "en stock" sont expédiés le jour même pour les commandes passées avant 14h00.

Information

Bei Fragen zum Produkt oder detaillierter Informationen zum Bestellvorgang. Ruf uns an!

Telefon: +41 44 500 84 66

Email: support@rcxx.shop

SRT Servo CH712S 1/10 Onroad/Offroad HV (0.049s/8.4V/12.6kg)

KEY FEATURES

& Ideal for 1/10 on road scale applications,  as well as large scale airplanes and jets
& incredible efficiency and low power consumption
& Titanium & Alu gears for precision and durability
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& SSR mode compatible
& 2 μsec Dead Band
& Superior Holding Torque
& 1-Year Limited Warranty

Item no 6.0V 7.4V 8.4V Gear Motor Case Dimension
(mm)
Weight
(g)
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
Speed:
sec/60°
Torque:
kg-cm/oz-in
CH712S 0.065 9.8/136.1 0.052 11.8/163.9 0.049 12.6/175.0 Titanium & Alu Coreless  all-metal 41.0*20.0*26.4 52.0


Application :
SRT CH712S 1/10Scale On-road HV Servo1/10 Electric/ Car         SRT CH712S 1/10Scale On-road HV Servo1/10 Nitro/ Car               SRT CH712S 1/10Scale On-road HV Servo 2 4WD / Off-road
SRT CH712S 1/10Scale On-road HV Servo On-road


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.065 sec/60 degrees at no load
operating speed (7.4v): 0.052 sec/60 degrees at no load
operating speed (8.4v): 0.049 sec/60 degrees at no load
stall torque (6.0v): 9.8kg.cm (136.1 oz/in)
stall torque (7.4v): 11.8kg.cm (163.9 oz/in)
stall torque (8.4v): 12.6kg.cm (175.0 oz/in)
potentiometer drive: direct drive

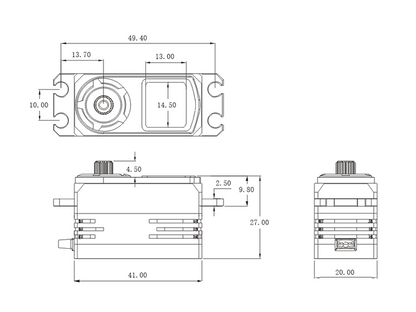

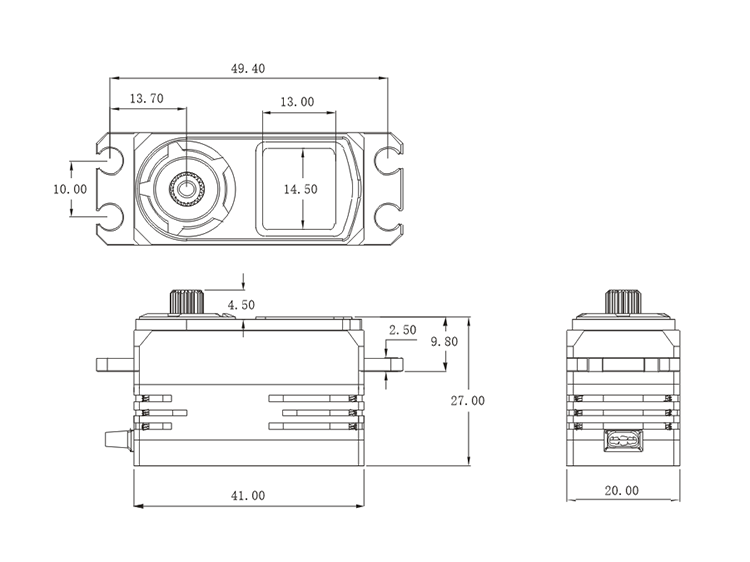

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 180 mm

}
