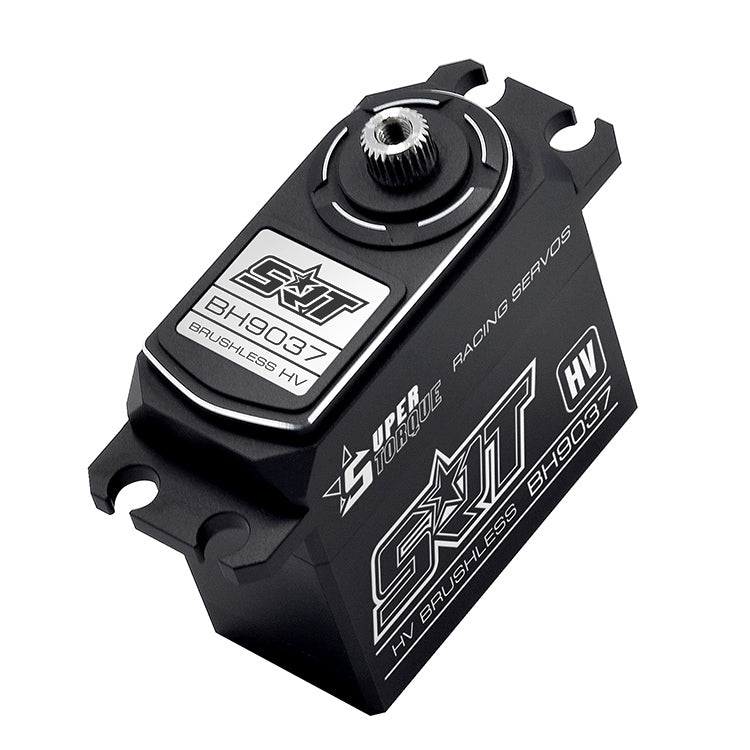

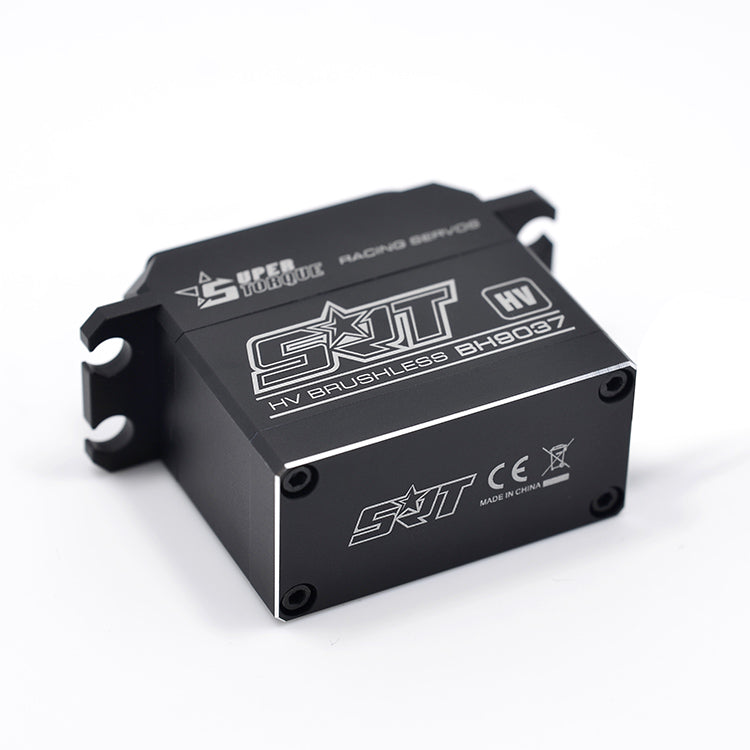

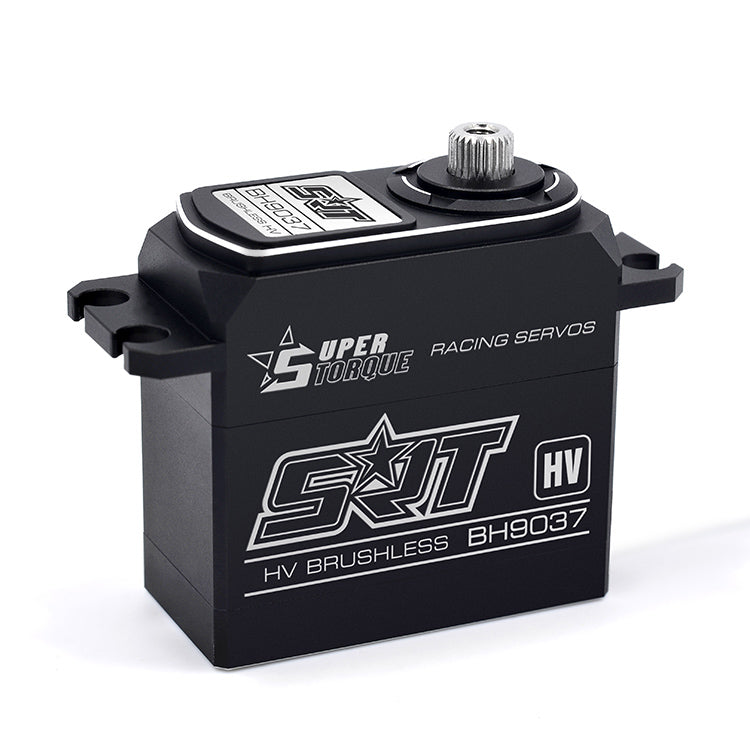

SRT Servo BH9037 1/8 & 1/5 Onroad/Offroad HV (0.13s/8.4V/37kg) Brushless
KEY FEATURES
& Ideal for 1/5 On road applications, as well as large scale airplanes and jets
& Superior Holding Torque
& incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo

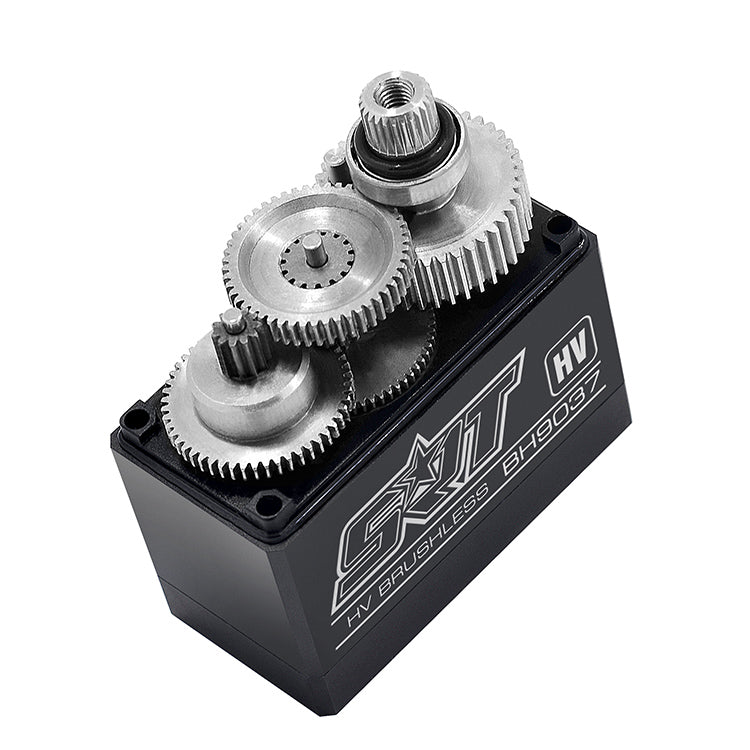

& Titanium & Steel gears for precision and durability
& CNC Machined aluminum case for exceptional cooling
& NMB dual main bearings
& 25T output shaft
& HD 4096 Resolution
& 2 μsec dead band
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | dimension (mm) |
Weight (G) |
|||
| Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
| BH9037 | 0.16 | 30.0/416.6 | 0.14 | 35.0/486.0 | 0.13 | 37.0/513.8 | Titanium & Steel | Brushless | all-metal | 40.0*20.0*38.0 | 80.0 |
Application :
1/5 on-road Electric/ Car
1/5 on-road Nitro/ Car
1/8 2 4WD / Off-road
1/5 Off-road
Air plane
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Steel
Control system: pulse width control
working frequency: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degrees
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.14 sec/60 degrees at no load
operating speed (8.4v): 0.13 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
stall torque (7.4v): 35.0kg.cm (486.0 oz/in)
stall torque (8.4v): 37.0kg.cm (513.8 oz/in)
potentiometer drive: direct drive

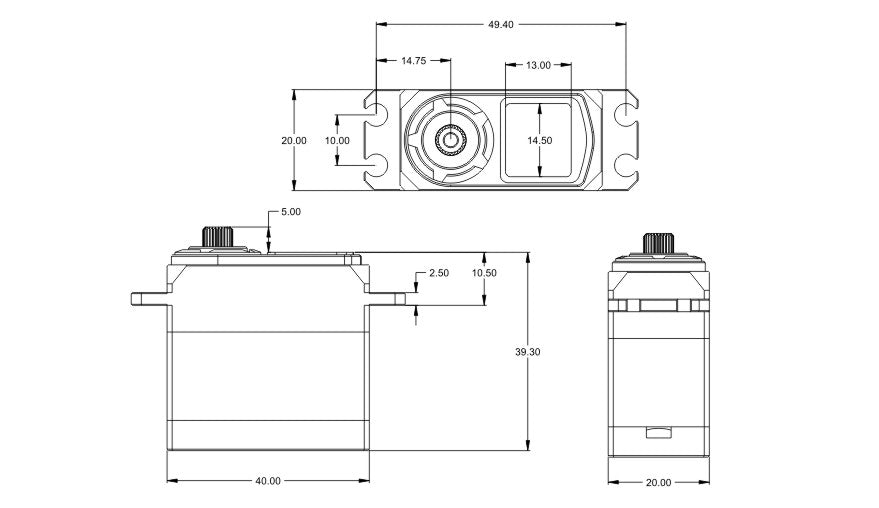

dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 80.0g (2.82 oz)
Connector wire length: jr 300 mm
